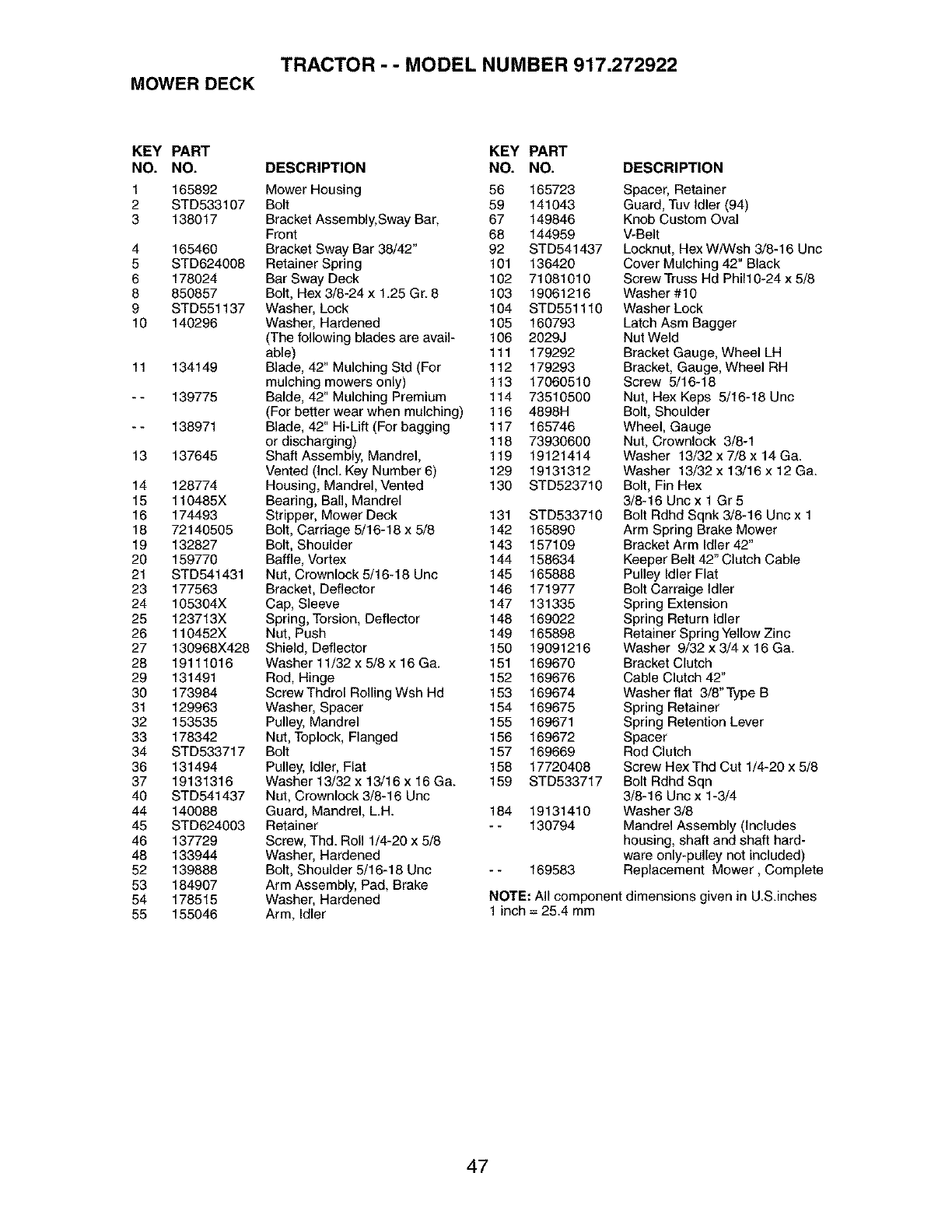

TRACTOR - - MODEL NUMBER 917.272922

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 165892 Mower Housing 56 165723

2 STD533107 Belt 59 141043

3 138017 Bracket Assembly, Sway Bar, 67 149846

Front 68 144959

4 165460 Bracket Sway Bar 38/42" 92 STD541437

5 STD624008 Retainer Spring 101 136420

6 178024 Bar Sway Deck 102 71081010

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 103 19061216

9 STD551137 Washer, Lock 104 STD551110

10 140296 Washer, Hardened 105 160793

(The following blades are avail- 106 2029J

able) 111 179292

11 134149 Blade, 42" Mulching Std (For 112 179293

mulching mowers only) 113 17060510

-- 139775 Balde, 42" Mulching Premium 114 73510500

(For better wear when mulching) 116 4898H

-- 138971 Blade, 42" Hi-Lift (For bagging 117 165746

or discharging) 118 73930600

13 137645 Shaft Assembly, Mandrel, 119 19121414

Vented (Incl. Key Number 6) 129 19131312

14 128774 Housing, Mandrel, Vented 130 STD523710

15 110485X Bearing, Ball, Mandrel

16 174493 Stripper, Mower Deck 131 STD533710

18 72140505 Bolt, Carriage 5/16-18 x 5/8 142 165890

19 132827 Bolt, Shoulder 143 157109

20 159770 Baffle, Vortex 144 158634

21 STD541431 Nut, Crownlock 5/16-18 Unc 145 165888

23 177563 Bracket, Deflector 146 171977

24 105304X Cap, Sleeve 147 131335

25 123713X Spring, Torsion, Deflector 148 169022

26 110452X Nut, Push 149 165898

27 130968X428 Shield, Deflector 150 19091216

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 151 169670

29 131491 Rod, Hinge 152 169676

30 173984 Screw Thdrol Roiling Wsh Hd 153 169674

31 129963 Washer, Spacer 154 169675

32 153535 Pulley, Mandrel 155 169671

33 178342 Nut, Toplock, Flanged 156 169672

34 STD533717 Belt 157 169669

36 131494 Pulley, Idler, Plat 158 17720408

37 19131316 Washer 13/32 x 13/16 x 16 Ga. 159 STD533717

40 STD541437 Nut, Crownlock 3/8-16 Unc

44 140088 Guard, Mandrel, L.H. 184 19131410

45 STD624003 Retainer - - 130794

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened

52 139888 Bolt, Shoulder 5/16-18 Unc - - 169583

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, Idler

DESCRIPTION

Spacer, Retainer

Guard, Tuv Idler (94)

Knob Custom Oval

V-Belt

Locknut, Hex W/Wsh 3/8-16 Unc

Cover Mulching 42" Black

Screw Truss Hd Phil10-24 x 5/8

Washer #10

Washer Lock

Latch Asm Bagger

Nut Weld

Bracket Gauge, Wheel LH

Bracket, Gauge, Wheel RH

Screw 5/16-18

Nut, Hex Keps 5/16-18 Unc

Bolt, Shoulder

Wheel, Gauge

Nut, Crownlock 3/8-1

Washer 13/32 x 7/8 x 14 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Pin Hex

3/8-16 Uncx 1 Gr5

Bolt Rdhd Sqnk 3/8-16 Unc x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carraige Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 42"

Washer flat 3/8"Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn

3/8-16 Unc x 1-3/4

Washer 3/8

Mandrel Assembly (Includes

housing, shaft and shaft hard-

ware only-pulley not included)

Replacement Mower, Complete

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm
