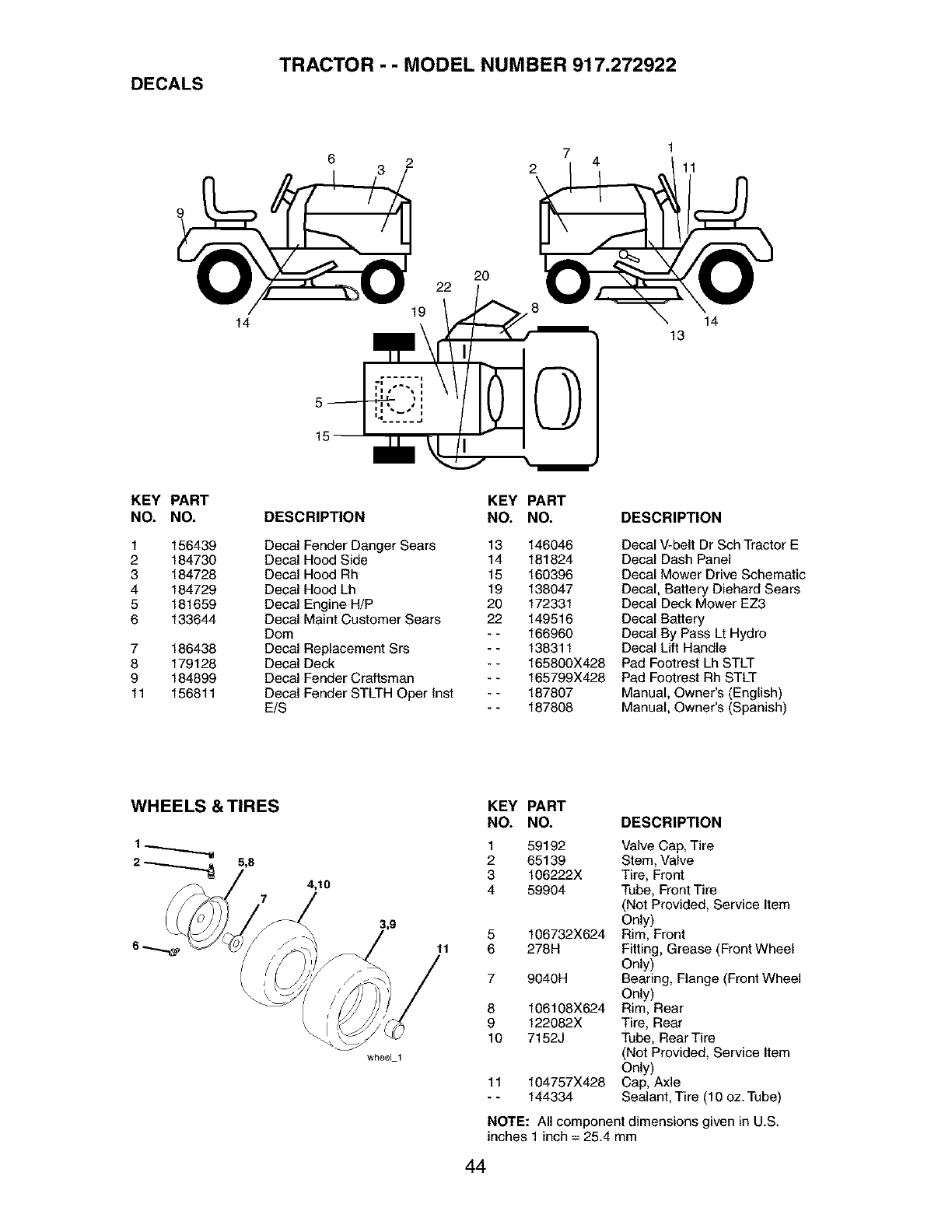

TRACTOR - - MODEL NUMBER 917.272922

DECALS

7

3 2 2 4

1

11

KEY PART

NO. NO.

1 156439

2 184730

3 184728

4 184729

5 181659

6 133644

7 186438

8 179128

9 184899

11 156811

14

22

DESCRIPTION

Decal Fender Danger Sears

Decal Hood Side

Decal Hood Rh

Decal Hood Lh

Decal Engine H/P

Decal Maint Customer Sears

Dom

Decal Replacement Srs

Decal Deck

Decal Fender Craftsman

Decal Fender STLTH Oper lnst

E/S

KEY PART

NO. NO.

13 146O46

14 181824

15 160396

19 138047

20 172331

22 149516

-- 166960

-- 138311

-- 165800X428

-- 165799X428

-- 187807

-- 187808

14

13

DESCRIPTION

Decal V-belt Dr Sch Tractor E

Decal Dash Panel

Decal Mower Drive Schematic

Decal, Battery Diehard Sears

Decal Deck Mower EZ3

Decal Battery

Decal By Pass Lt Hydro

Decal Lift Handle

Pad Footrest Lh STLT

Pad Footrest Rh STLT

Manual, Owner's (English)

Manual, Owner's (Spanish)

4,10

wheel I

11

KEY PART

NO. NO. DESCRIPTION

1

2

3

4

5

6

7

8

9

10

11

59192 Valve Cap, Tire

65139 Stem, Valve

106222X Tire, Front

59904 Tube, Front Tire

(Not Provided, Service Item

Only)

106732X624 Rim, Front

278H Fitting, Grease (Front Wheel

Only)

9040H Bearing, Flange (Front Wheel

Only)

106108X624 Rim, Rear

122082X Tire, Rear

7152J Tube, Rear Tire

(Not Provided, Service Item

Only)

104757X428 Cap, Axle

144334 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

44
