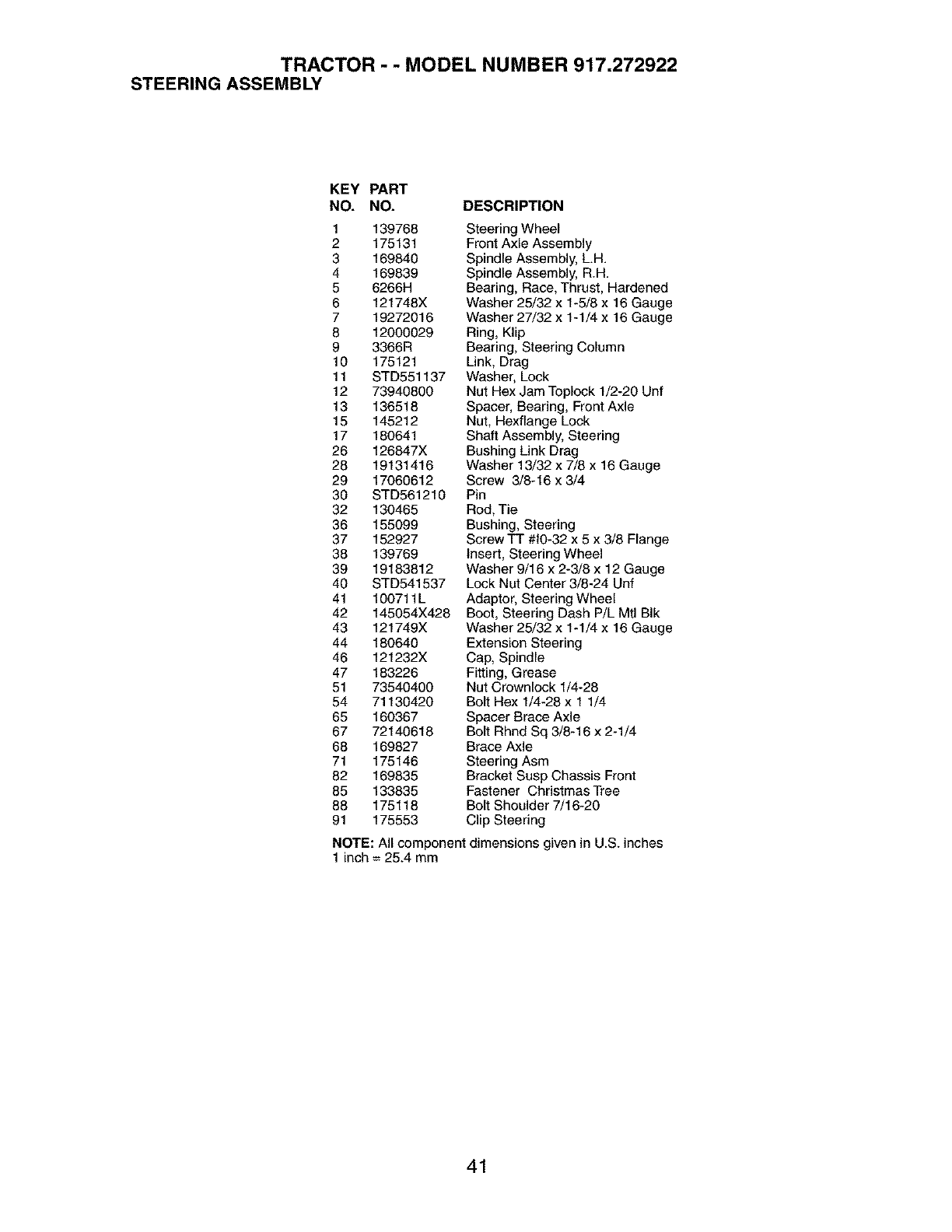

TRACTOR - - MODEL NUMBER 917.272922
STEERINGASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 139768
2 175131
3 169840
4 169839
5 6266H
6 121748X
7 19272016
8 12000029
9 3366R
10 175121
11 STD551137
12 73940800
13 136518
15 145212
17 180641
26 126847X
28 19131416
29 17060612
30 STD561210
32 130465
36 155099
37 152927
38 139769
39 19183812
40 STD541537
41 100711L
42 145054X428
43 121749X
44 180640
46 121232X
47 183226
51 73540400
54 71130420
65 160367
67 72140618
68 169827
71 175146
82 169835
85 133835
88 175118
91 175553
Steering Wheel
Front Axle Assembly
Spindle Assembly, LH.
Spindle Assembly, R.H.
Bearing, Race, Thrust, Hardened
Washer 25/32 x 1-5/8 x 16 Gauge
Washer 27/32 x 1-1/4 x 16 Gauge
Ring, Klip
Bearing, Steering Column
Link, Drag
Washer, Lock
Nut Hex Jam Topleck 1/2-20 Unf
Spacer, Bearing, Front Axle
Nut, Hexflange Lock
Shaft Assembly, Steering
Bushing Link Drag
Washer 13/32 x 7/8 x 16 Gauge
Screw 3/8-16 x 3/4
Pin
Rod, Tie
Bushing, Steering
Screw TT #10-32 x 5 x 3/8 Flange
Insert, Steering Wheel
Washer 9/16 x 2-3/8 x 12 Gauge
Lock Nut Center 3/8-24 Unf
Adaptor, Steering Wheel
Boot, Steering Dash P/L Mtl BIk
Washer 25/32 x 1-1/4 x 16 Gauge
Extension Steering
Cap, Spindle
Fitting, Grease
Nut Crownleck 1/4-28
Bolt Hex 1/4-28 x 1 1/4
Spacer Brace Axle
Bolt Rhnd Sq 3/8-16 x 2-1/4
Brace Axle
Steering Asm
Bracket Susp Chassis Front
Fastener Christmas Tree
Bolt Shoulder 7/16-20
Clip Steering
NOTE: All component dimensions given in U.S. inches
