ENGINE

2

31

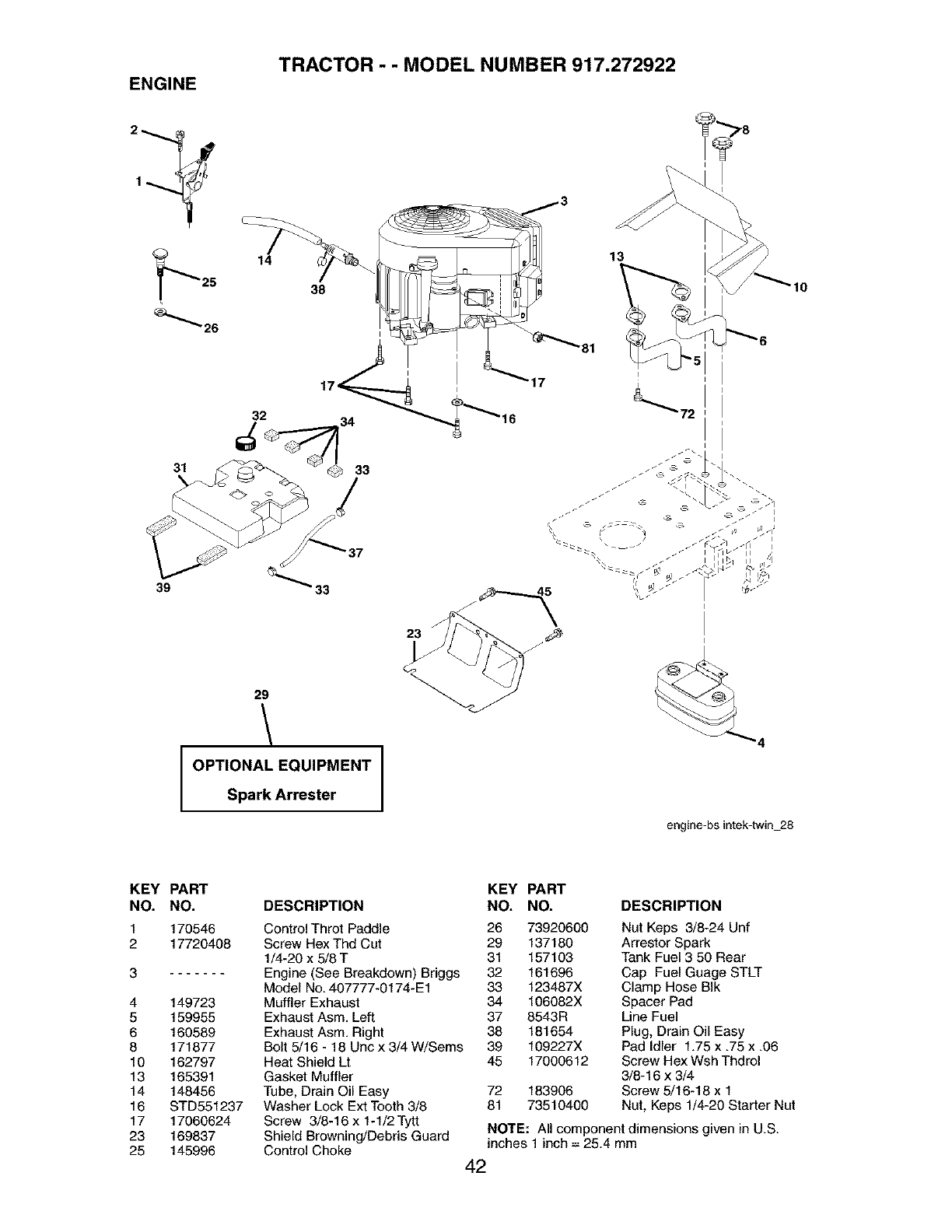

TRACTOR - - MODEL NUMBER 917.272922

14

38

13

39

29

\

OPTIONAL EQUIPMENT

Spark Arrester

23

engine-bsintek-twin 28

KEY PART

NO. NO.

1 170546

2 17720408

3

4 149723

5 159955

6 160589

8 171877

10 162797

13 165391

14 148456

16 STD551237

17 17060624

23 169837

25 145996

KEY PART

DESCRIPTION NO. NO.

Control Throt Paddle 26 73920600

Screw Hex Thd Cut 29 137180

1/4-20 x 5/8T 31 157103

Engine (See Breakdown) Bdggs 32 161696

Model No. 407777-0174-E1 33 123487X

Muffler Exhaust 34 106082X

Exhaust Asm. Left 37 8543R

Exhaust Asm. Right 38 181654

Bolt 5/16 - 18 Uric x 3/4 W/Sems 39 109227X

Heat Shield Lt 45 17000612

Gasket Muffler

Tube, Drain Oil Easy 72 183906

Washer Lock Ext Tooth 3/8 81 73510400

Screw 3/8-16 x 1-1/2Tytt

Shield Browning/Debris Guard

Control Choke

DESCRIPTION

Nut Keps 3/8-24 Unf

Arrestor Spark

Tank Fuel 3 50 Rear

Cap Fuel Guage STLT

Clamp Hose BIk

Spacer Pad

Line Fuel

Plug, Drain Oil Easy

Pad Idler 1.75 x .75 x .06

Screw Hex Wsh Thdrol

3/8-16 x 3/4

Screw 5/16-18 x 1

Nut, Keps 1/4-20 Starter Nut

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

42
