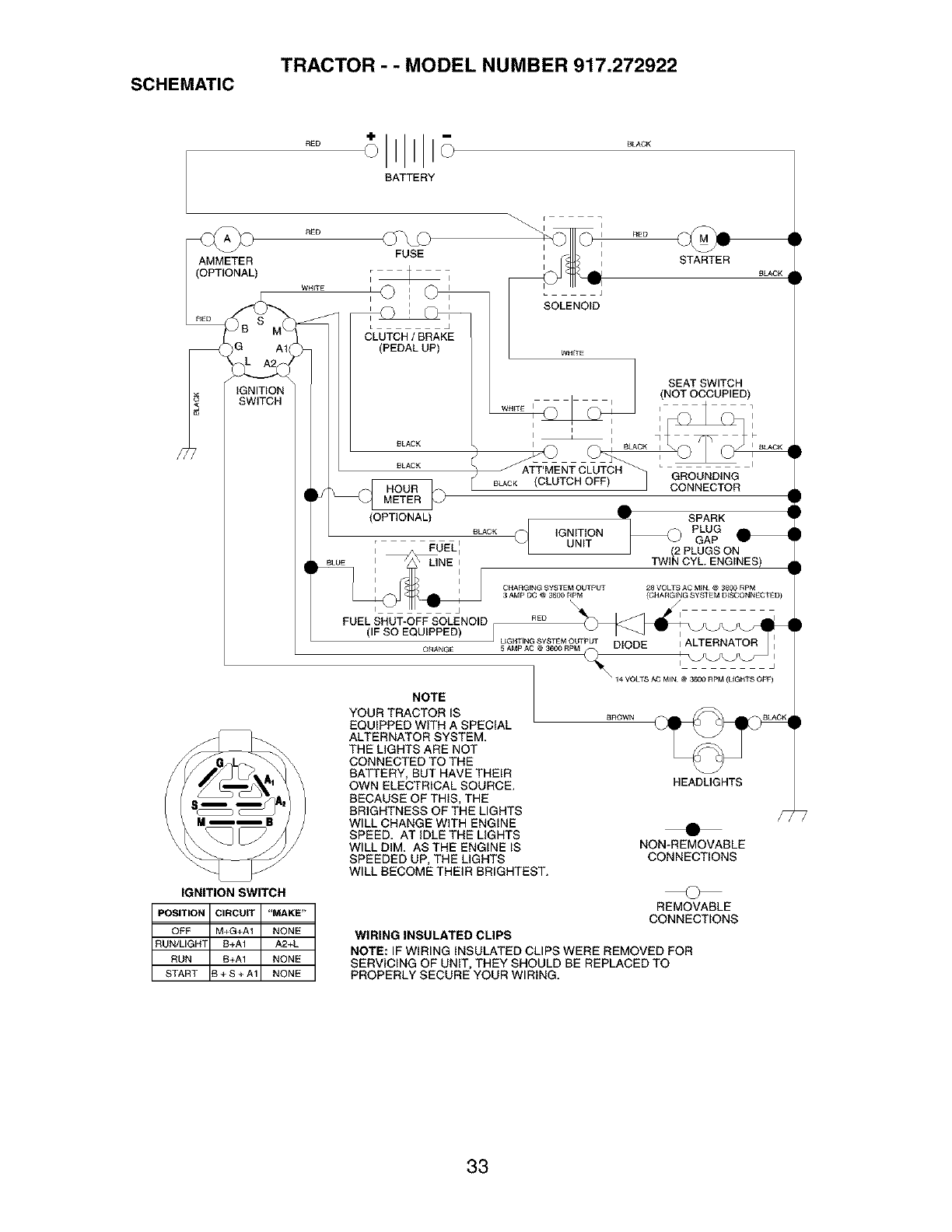

TRACTOR - - MODEL NUMBER 917.272922

SCHEMATIC

BATTERY

RED

AMMETER

(OPTIONAL) WHETE

IGNITION

SWITCH

IGNITION SWITCH

POSITION CIRCUIT "MAKE '_

OFF M+G+AI NONE

RUN/LIGN] 8+A1 A2+L

RUN 8+A1 NONE

START B + S + A1 NONE

FUSE

I I

'© C>

L J

CLUTCH ! BRAKE

(PEDAL UP)

BLACK

STARTER

BLACK

SOLENOID

WHETE

SEAT SWITCH

NOT OCCUPIED)

CONNECTOR

dli

(OPTIONAL)

BLACk

_HUT-OFF SOLENOID

ATT'MENT CLUTCH 7

BL_CK (CLUTCH OFF) GROUNDING

v SPARK •

IGNITION _(_ PLUG H

UNIT GAP

J (2 PLUGS ON

TWIN CYL. ENGINES) I

CHARGENG SYSTEM OUTPUT 28 VOLTS AC M_N @ 3600 RPM

3 AMP DC @ 36C0 RPM (CHA RGENG SYSTEM DESCONNECTED I

RE£} I_E_N_T _

LE_NT_NG SYSTEN OUTPUT I

5AMPAC@36C0RPM DIODE i ALTERNATOR i

,14 VOLTS AC MIN @ 360O RPM (UGHTS OFF)

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

ORANGE

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLETHE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.
