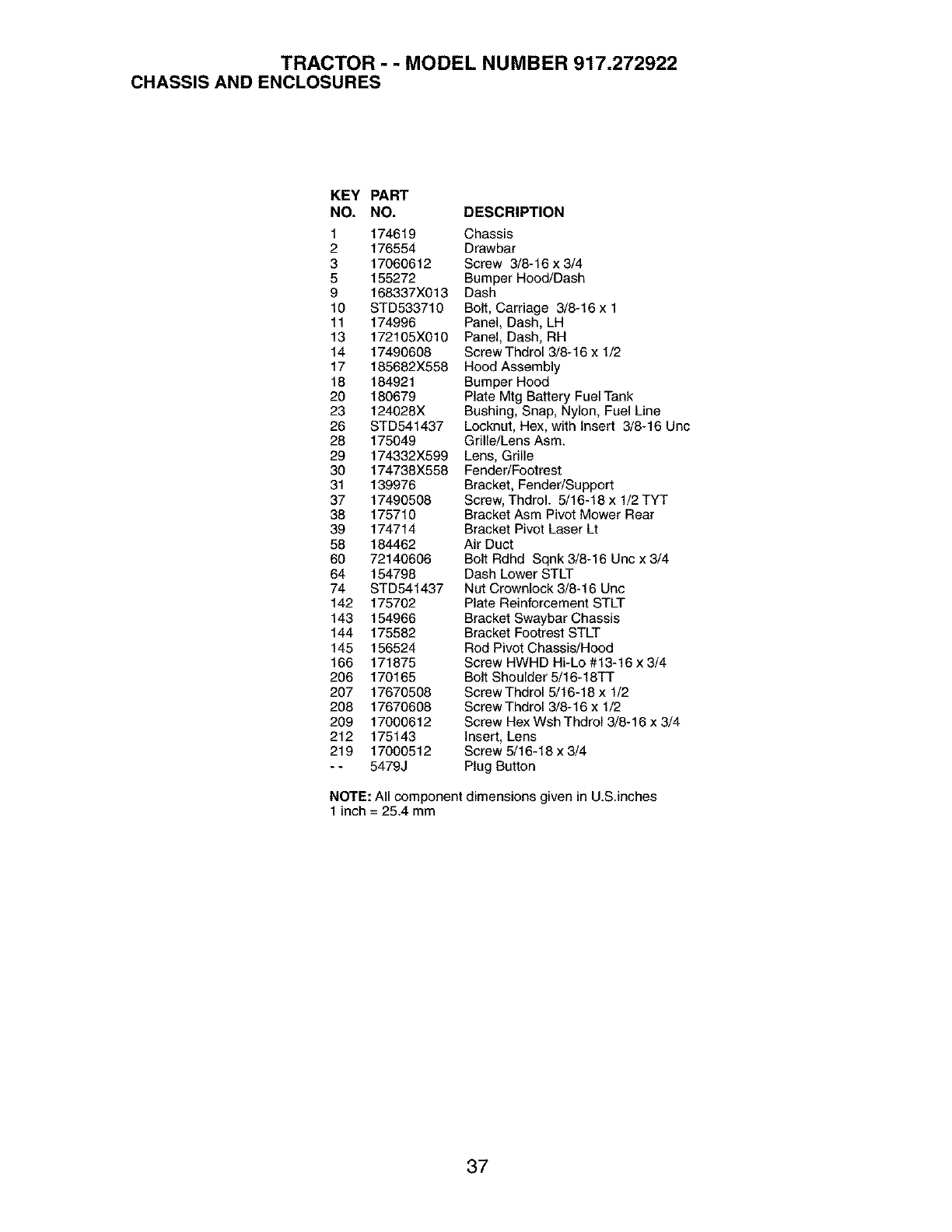

TRACTOR - - MODEL NUMBER 917.272922

CHASSIS AND ENCLOSURES

KEY PART

NO. NO.

1 174619

2 176554

3 17060612

5 155272

9 168337X013

10 STD533710

11 174996

13 172105X010

14 17490608

17 185682X558

18 184921

20 180679

23 124028X

26 STD541437

28 175049

29 174332X599

30 174738X558

31 139976

37 17490508

38 175710

39 174714

58 184462

60 72140606

64 154798

74 STD541437

142 175702

143 154966

144 175582

145 156524

166 171875

206 170165

207 17670508

208 17670608

209 17000612

212 175143

219 17000512

-- 5479J

DESCRIPTION

Chassis

Drawbar

Screw 3/6-16 x 3/4

Bumper Hood/Dash

Dash

Bolt, Carriage 3/6-16 x 1

Panel, Dash, LH

Panel, Dash, RH

Screw Thdrol 3/8-16 x 1/2

Hood Assembly

Bumper Hood

Plate Mtg Battery Fuel Tank

Bushing, Snap, Nylon, Fuel Line

Locknut, Hex, with Insert 3/8-16 Unc

Grille/Lens Asm.

Lens, Grille

Fender/Footrest

Bracket, Fender/Support

Screw, ThdreL 5/16-18 x 1/2 TYT

Bracket Asm Pivot Mower Rear

Bracket Pivot Laser Lt

Air Duct

Bolt Rdhd Sqnk 3/8-16 Uric x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 Uric

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Footrest STLT

Rod Pivot Chassis/Hood

Screw HWHD Hi-Lo #13-16 x 3/4

Bolt Shoulder 5/16-18TT

Screw Thdrol 5/16-18 x 1/2

Screw Thdrol 3/8-16 x 1/2

Screw Hex Wsh Thdrol 3/8-16 x 3/4

Insert, Lens

Screw 5/16-18 x 3/4

Plug Button

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm

37
