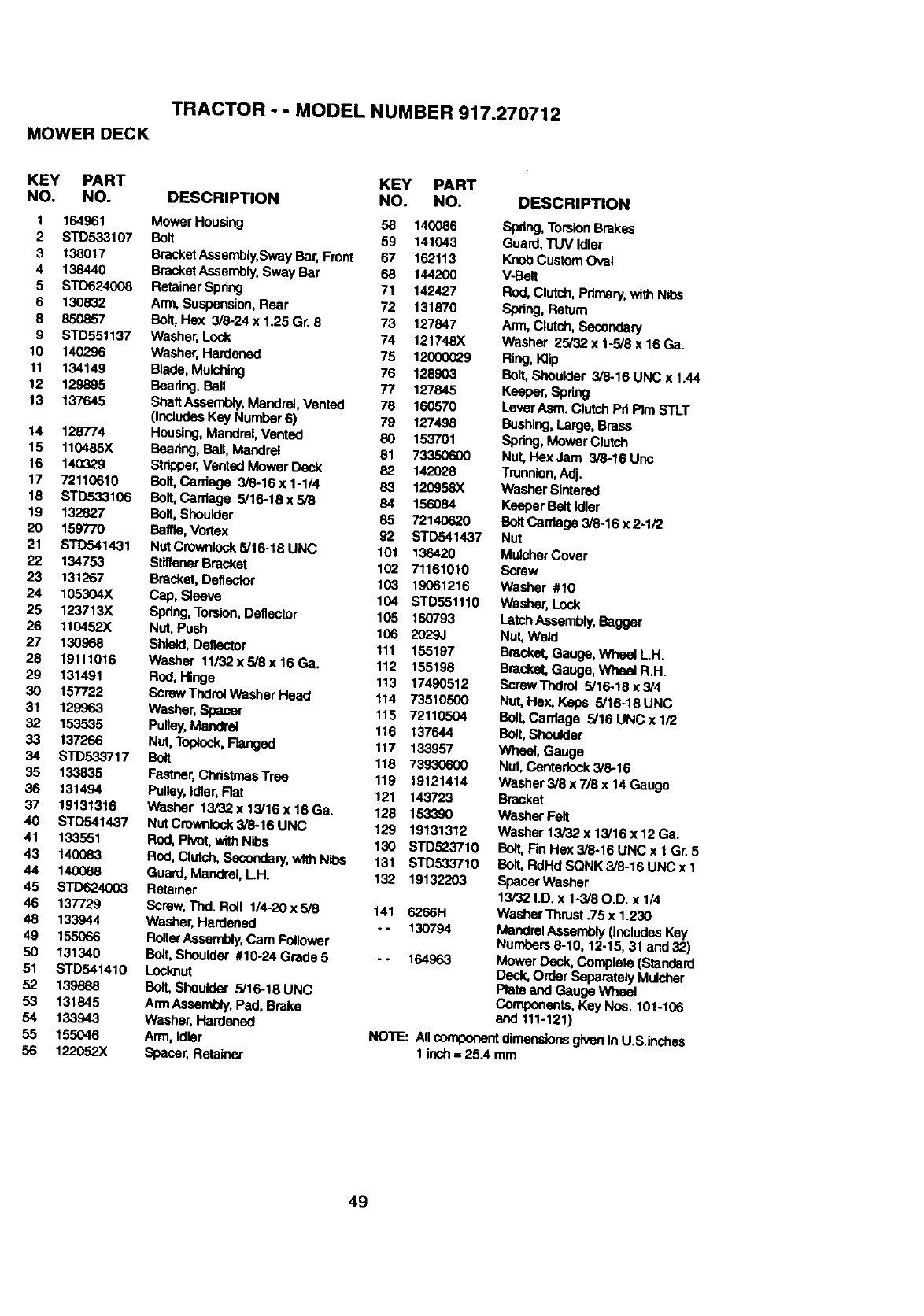

TRACTOR - - MODEL NUMBER 917.270712

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 164961 Mower Housing 58 140086

2 STD533107 Bolt 59 141043

3 138017 BracketAssembly,Sway Bar, Front 67 162113

4 138440 BracketAssembly,Sway Bar 68 144200

5 STD624008 Retainer Spring 71 142427

6 130832 Arm, Suspension, Rear 72 131870

8 850857 Bolt,Hax 3/6-24 x 1.25 Gr. 8 73 127847

9 STD551137 Washer, Lock 74 121748X

10 140296 Washer, Hardened 75 12000029

11 134149 Bade, Mulching 76 128903

12 129895 Baadng, Ball 77 127845

13 137645 ShaftAssembly,Mandrel, Vented 78 160570

(IncludesKey Number 6) 79 127498

14 128774 Housing,Mandrel, Vented 80 153701

15 110485X Bearing,Ball, Mandrel 81 73350600

16 140329 Strtaper,Vented Mower Deck 82 142028

17 72110610 Bolt,Carriage 3/8-16x 1-1/4 83 120958X

18 STD533106 Balt, Canlage 5/16-18x5/8 84 156084

19 132827 Bolt,Shoulder 85 72140620

20 159770 Baffle, Vortex 92 STD541437

21 STD541431 Nut Crownlock5/16-18 UNC 101 136420

22 134753 StltfenerBracket 102 71161010

23 131267 Bracket, Deflector 103 19061216

24 105304X Cap, Sleeve 104 STD551110

25 123713X Spring,Torsior_,Deflector 105 160793

26 110452X Nut, Push 106 2029J

27 130968 Shield,Denoctor 111 155197

28 19111016 Washer 11/32xs/8x16Ga. 112 155198

29 131491 Rod, Hinge 113 17490512

30 157722 Scraw Thdtel washer Head 114 73510500

31 129963 Washer, Spacer 115 72110504

32 153535 Pulley,Mandrel 116 137644

33 137266 NUt, Toplock,Flanged 117 133957

34 STD533717 Bolt 118 73930600

35 133835 Fastner,ChristmasTme 119 19121414

36 131494 Pulley,idler, Rat 121 143723

37 19131316 Washer 13/32x13/16x16Ga. 128 153390

40 STD541437 NutCrownlock3/6-16UNC 129 19131312

41 133551 Rnd, Pivot,withNibs 130 STD523710

43 140083 Rod, Clutch,Secondary,with Nibs 131 STD533710

44 140088 Guard, MaP,drel, LH. 132 19132203

45 STD624003 Retainer

46 137729 Screw,Thd. ROlt 1/4-20 x 5/8 141 6266H

48 133944 Washer, Hardened - - 130794

49 155066 RollerAssembly,Cam Follower

50 131340 Bolt,Shoulder #1024Grade5 -. 164963

51 STD541410 Locknut

52 139888 Bolt,Shoulder 5/16-18 UNC

53 131845 ArmAssembly,Pad, Brake

54 133943 Washer, Hardened

55 155046 Arm, Idler

56 122052X Spacer, Retainer

DESCRIPTION

Spring, TorsionBrakes

Guard, TUV td_er

KnobCustom Oval

V-Bait

Rod,Clutch, Primary,withNibs

Spring, Return

Arm,Clutch,Secondan/

Washer 25/32 x 1-5/8 x 16 Ga.

Ring,K_

Bolt,Shoulder 5/8-16 UNC x 1.44

Keeper,Spring

Lever Asm. ClutchPd PImSTLT

Bushing,Large, Brass

Spring, Mower Clutch

Nut, I-laxJam 3/8-16 Unc

Trunnion,Adj.

Washer Sintered

Keeper Belt idler

BoltCawlage 3/8-16 x 2-1/2

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Aseambly,Bagger

Nut, Weld

Bracket, Gauge, Wheel L.H.

Bracket, Gauge, Wheel R.H.

ScrewTndml 5/16-13 x 3/4

Nut, Hex, Kaps 5/16-18 UNC

Belt, Carriage 5/16 UNC x 1/2

Bolt,Shoulder

Wheel, Gauge

Nut, Centedock3/6-16

Washer 3/8 x 7/8 x 14 Gauge

Bracket

Washer Felt

Washer 13/32 x 13/16 x 12 Ga.

B_t, F'mHex 3_-16 UNC x 1 Gr. 5

Bolt,RdHd SQNK 3/8-16 UNC x 1

Spacer Washer

13/32 I.D. x 1-3/80.D. x 1/4

Washer "rhrust.75 x 1.230

Mandrel Assembly(IncludesKey

Numbers 8-10, 12-15, 31 and 32)

Mower Deck, Complete (Standard

Deck, Order Separately Mulsher

Plate and Gauge Wheal

Components, Key Nea. 101-106

and 111-121)

NO'RE: Allcomponentdimensionsgivenin U.S.inches

1 lach= 25.4 mm

49
