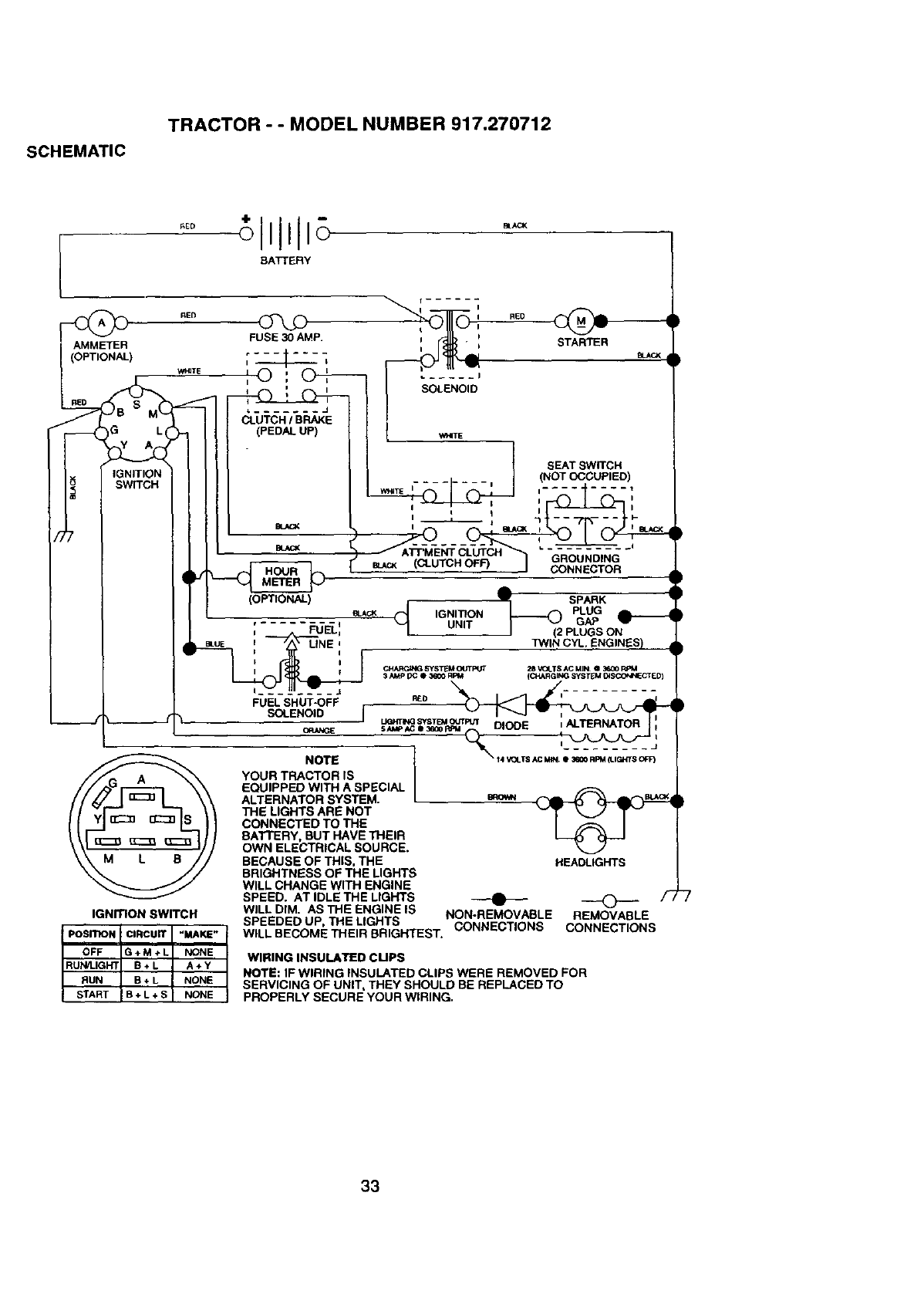

SCHEMATIC

TRACTOR - - MODEL NUMBER 917,270712

BA'fTERY

AMMETER

(OPTIONAL)

W_TE

FUSE 30 AMP.

L ....... J

CLUTCH / BRAKE

(PEDAL UP)

i I

I RED

=_S_LE_ _1.= STARTER

_ACK

SEAT SWITCH

I....... J (NOT

OCCUPIED)

BLUE

IGNITION SWITCH

POSITIONI CIRCUIT "MAKE"

OFF G+M+L NONE

RUi_t_IGHT B+ L A +Y

RUN B+ L NONE

START B + L+ S NONE

LINE

FUEL SHUT-OFF

SOLENOID J

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

• SPARK

,GNmON

UNIT

PLUGS ON

]_NIN CYI-. ENGINES)

(_ARGING SYSTI_M(_ITFIJT 2B_I_TSACMIN a 36001_'_1

3 AMP DC • 3600 RPM (CHARGING SysTI_M (_SCONNECTED)

R_.O I i

L_TmSYSTE_r_n tALTERNATOR =

s_Ac e_oePa DIODE =

......... J

_ 14 V_I_TS AC MIN Q 3EGO FIPM ILINS (_T)

HEADLIGHTS

NON-REMOVABLE REMOVABLE

WILL BECOME THEIR BRIGHTEST. CONNECTIONS CONNECTIONS

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.
