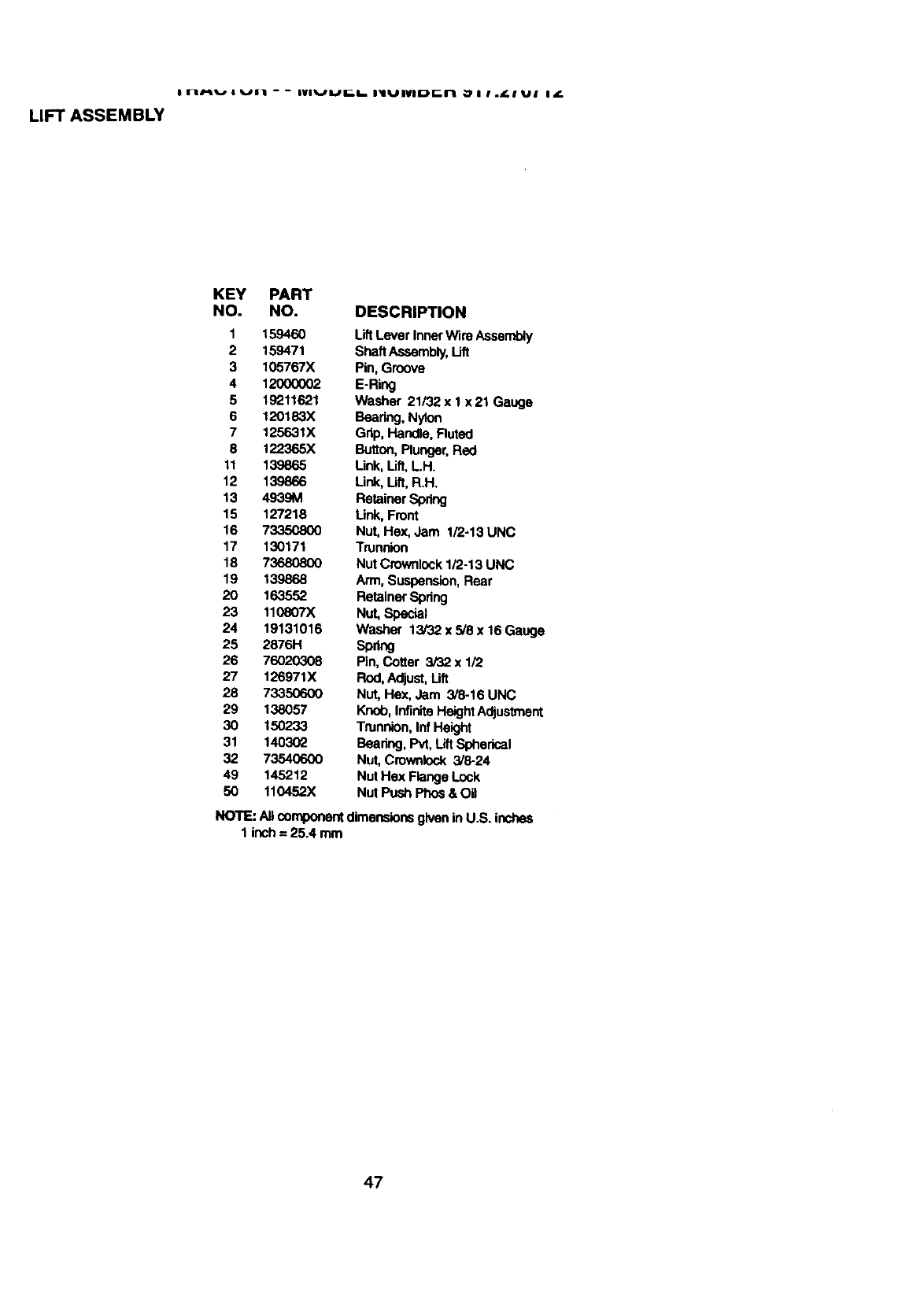

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever Inner Wire Assernbty

2 159471 ShaftAssembly,Lift

3 105767X Pin,Groove

4 12000002 E-Ring

5 19211621 Washer 21132 x 1 x 21 Gauge

6 120183X Bearing,Nylon

7 125631X Grip,Handle, Fluted

8 122365X Button,Plunger,Red

11 139865 Link,Lift,LH.

12 139866 Link, Lift, R.H.

13 4939M Retainer Spnng

15 127218 Link, Front

16 7335C800 Nut, Hex, Jam 1/2-13 UNC

17 130171 Trunnion

18 73680800 Nut CrownlockI/2-13 UNC

19 139868 Arm, Suspension,Rear

20 163552 Retainer Spring

23 110807X Nut, Special

24 19131016 Washer 13/32 x 5/8 x 16 Gauge

25 2876H Spring

26 76020308 Pin, Cotter 3/32 x 1/2

27 126971X Rod, Adjust,Lift

28 73350600 Nut, Hex, Jam 3/8-16 UNC

29 138057 Knob, InfiniteHeightAdjustment

30 150233 Trunnion,InfHeight

31 140302 Bearing, Pvt,Lift Spherical

32 73540600 Nut, Crowniock 3/8-24

49 145212 Nut Hex Flange Lock

50 110452X Nut Push Phos & Oil

NOTE: All componentdimensionsgivenin U.S. inches

1 inch = 25.4 mm
