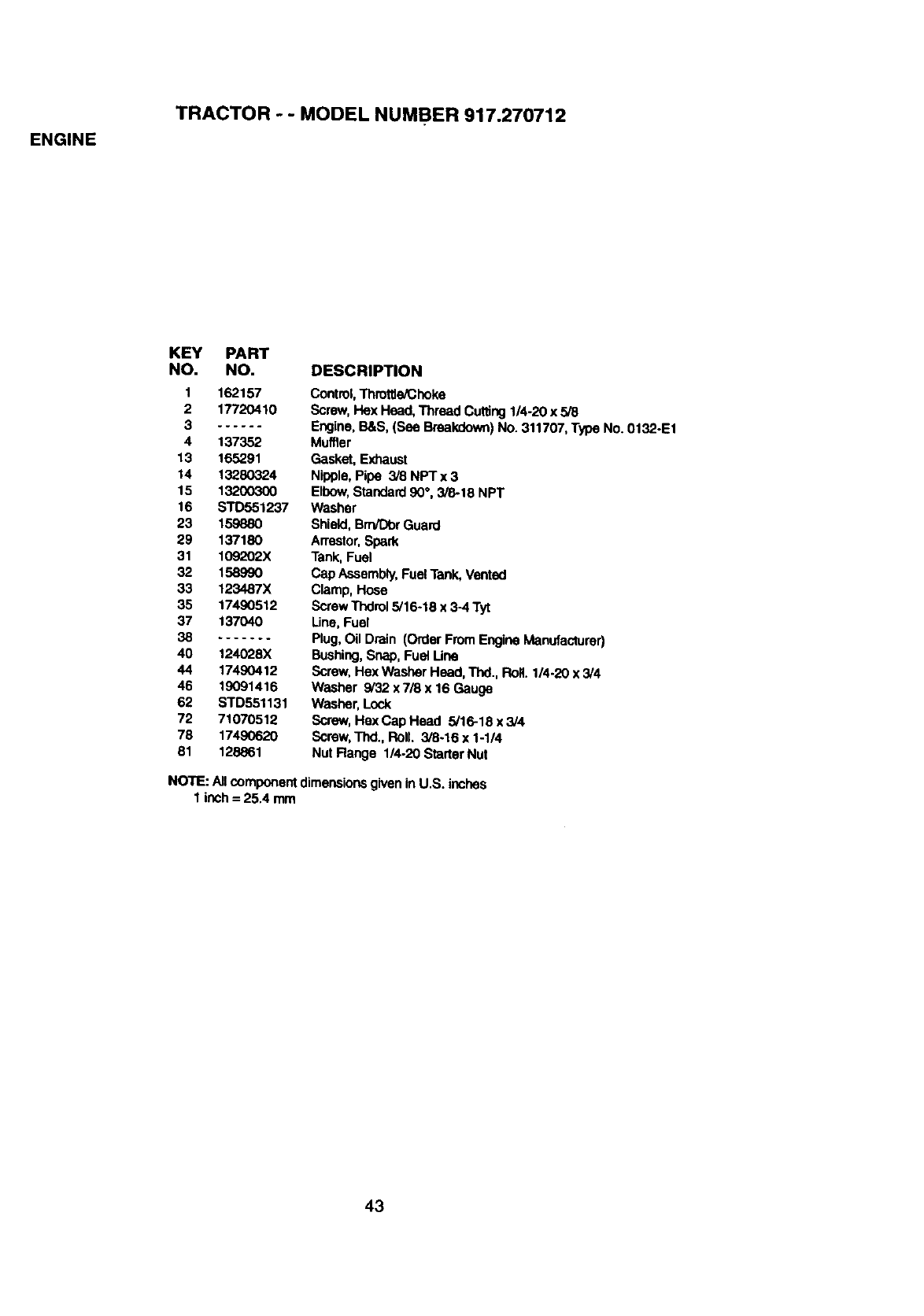

ENGINE

TRACTOR - - MODEL NUMBER 917.270712

KEY PART

NO. NO.

1 162157

2 17720410

4 137352

13 165291

14 13280324

15 13200300

16 STD551237

23 159880

29 137180

31 109202X

32 15899O

33 123487X

35 17490512

37 137040

38 .......

40 124028X

44 17490412

46 19091416

62 STD551131

72 71070512

78 17490620

81 128861

DESCRIPTION

Control,Throttle/Choke

Screw, Hex Head, Thread Cutting1/4-20 x 5/8

Engine,B&S, (See Breakdown)No. 311707, Type No. 0132-E1

Muffler

Gasket, Exhaust

Nipple, Pipe 3/8 NPT x 3

Elbow, Standard90°, 3/8-18 NPT

Washer

Shield,Brn/Dbr Guard

Arrestor,Spark

Tank, Fuel

CapAssembly,Fuel Tank,Vented

Clamp, Hose

Screw Thdrol5/16-18 x 3-4 Tyt

line, Fuel

Plug, Oil Drain (Order From Engine Manufacturer)

Bushing,Snap, Fuel Une

Screw, Hex Washer Head, TIxI., Roll. 1/4-20 x 3/4

Washer 9/32 x 718 x 16 Gauge

Washer, Lock

Screw,Hex Cap Head 5/16-18 x 3/4

Screw, Thd., Roll. 3/8-16 x 1-1/4

Nut Range 114.20Starter Nut

NOTE: Allcomponentdimensionsgivenin U.S. inches

1 inch = 25.4 mm
