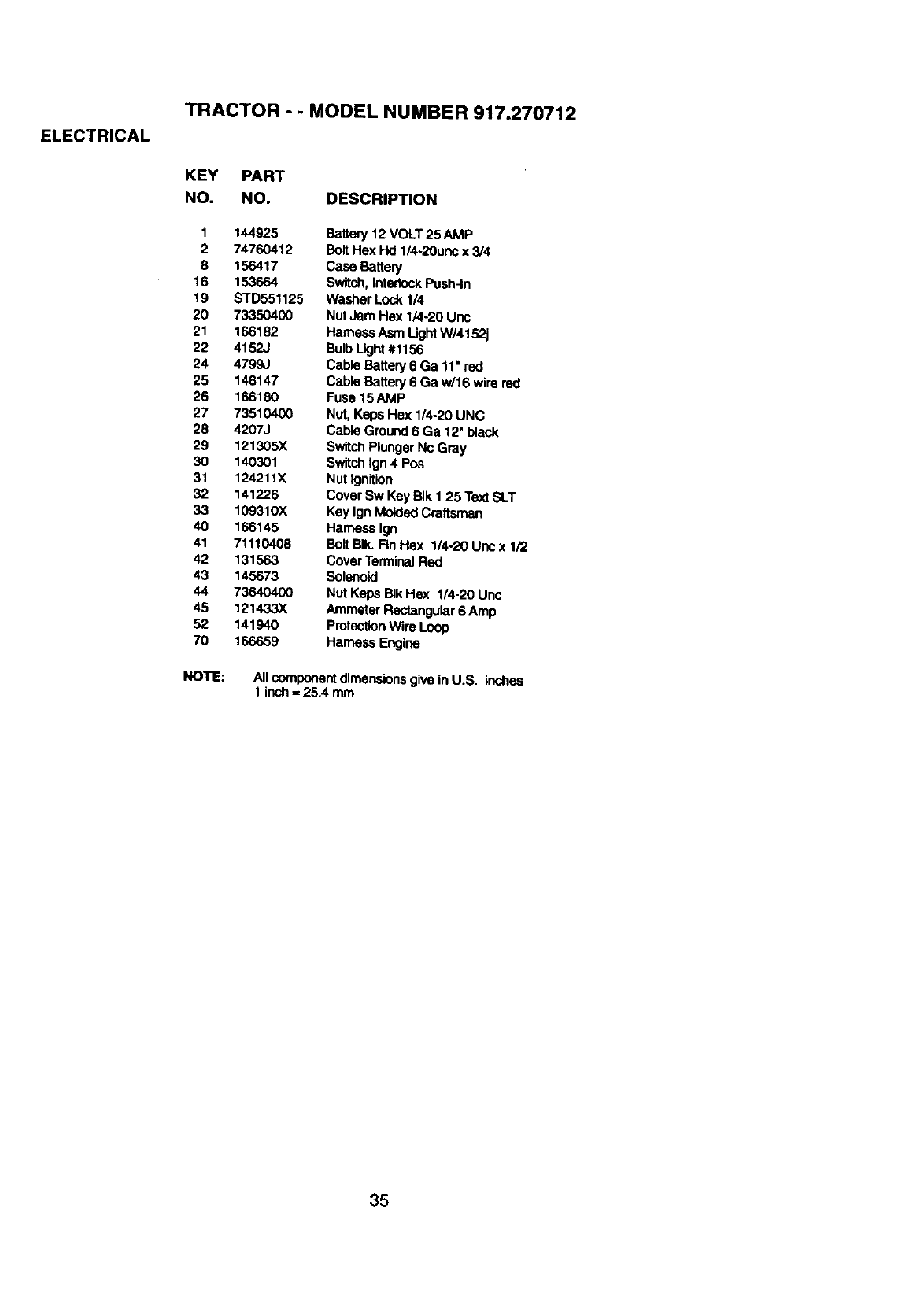

Craftsman 917.270712 Owner's Manual download pdf (Page 35)

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.270712

KEY PART

NO. NO. DESCRIPTION

1 144925 Battery 12 VOLT 25 AMP

2 74760412 BoltHex Hd 1/4-20unc x 3/4

8 156417 Case Battery

16 153664 Switch,InterlockPush-In

19 STD551125 Washer Lock 114

20 73350400 NutJam Hex 1/4-20 Unc

21 166182 Harness Asm Iight W/4152j

22 4152J Bulb Light#1156

24 4799J Cable Battery 6 Ga 11" red

25 146147 Cable Battery 6 Ga w/16 wire red

26 166180 Fuse 15AMP

27 73510400 Nut, Keps Hex 1/4-20 UNC

28 4207J Cable Ground6 Ga 12" black

29 121305X SwitchPlunger Nc Gray

30 140301 SwitchIgn 4 Pos

31 124211X Nut Ignition

32 141226 Cover Sw Key BIk 1 25 Text SLT

33 109310X Key Ign MoldedCraftsman

40 166145 Harness Ign

41 71110408 Bolt BIk. Fin Hex 1/4.20 Unc x 1/2

42 131563 CoverTerminal Red

43 145673 Solenoid

44 73640400 Nut Keps BIkHex 1/4-20 Unc

45 121433X Ammeter Rectangular6 Amp

52 141940 ProtectionWire Loop

70 166659 Harness Engine

NOTE:

Allcomponentdimensionsgive in U.S.

1 inch =25.4 mm
