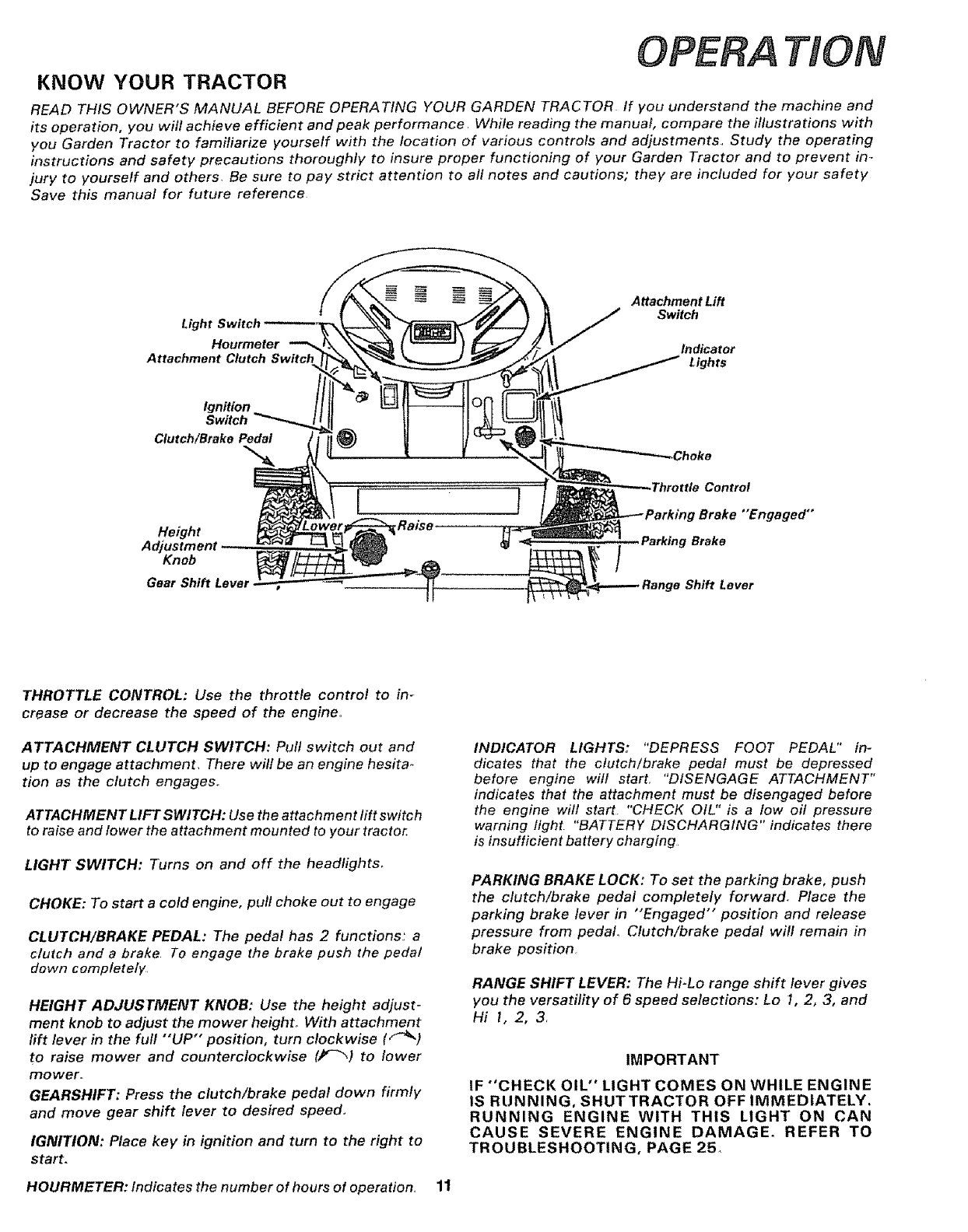

OPERA TION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL BEFORE OPERATING YOUR GARDEN TRACTOR If you understand the machine and
its operation, you will achieve efficient and peak performance, Whfe reading the manual, compare the illustrations with
you Garden Tractor to familiarize yourself with the location of various controls and adjustments., Study the operating
instructions and safety precautions thoroughly to insure proper functioning of your Garden Tractor and to prevent in-
jury to yourself and others. Be sure to pay strict attention to all notes and cautions; they are included for your safety
Save this manual for future reference
Attachment Lift
Switch
Hourmeter Indicator
Attachment Clutch Lights
Ignition
Switch
Clutch/Brake Pedal
Height
Adjustmen_
Knob
Gear Shift Lever,
THROTTLE CONTROL: Use the throttle control to in-
crease or decrease the speed of the engine°
ATTACHMENT CLUTCH SWITCH: Pull switch out and
up to engage attachment. There wi!l be an engine hesita_
tion as the clutch engages.
ATTACHMENT LIFT SWITCH: Use the attachment lift switch
to raise and lower the attachment mounted to your tractor.
LIGHT SWITCH: Turns on and off the headlights.
CHOKE: To start a cold engine, pull choke out to engage
CLUTCH/BRAKE PEDAL: The pedal has 2 functions,: a
clutch and a brake To engage the brake push the pedal
down completely
HEIGHT ADJUSTMENT KNOB: Use the height adjust-
ment knob to adjust the mower height,, With attachment
rift lever in the full "UP" position, turn clockwise (F_)
to raise mower and counterclockwise (_) to lower
mower.
GEARSHIFT: Press the clutch/brake pedal down firmly
and move gear shift lever to desired speed.
IGNITION: Place key in ignition and turn to the right to
start.
HOURMETER: Indicates the number of hours of operation, 11
INDICATOR LIGHTS: "DEPRESS FOOT PEDAL" in-
dicates that the clutch/brake pedal must be depressed
before engine will start, "DISENGAGE ATTACHMENT"
indicates that the attachment must be disengaged before
the engine will start, "CHECK OIL" is a low oil pressure
warning fight "BATTERY DISCHARGING" indicates there
is insufficient battery charging
PARKING BRAKE LOCK: To set the parking brake, push
the clutch/brake pedal completely forward° Place the
parking brake lever in "Engaged" position and release
pressure from pedal. Clutch/brake pedal will remain in
brake position
RANGE SHIFT LEVER: The Hi-Lo range shift lever gives
you the versatility of 6 speed selections: Lo 1, 2, 3, and
Hi 1,2,3,
IMPORTANT
IF "CHECK OIL" LIGHT COMES ON WHILE ENGINE
iS RUNNING, SHUTTRACTOR OFF IMMEDIATELY.
RUNNING ENGINE WiTH THIS LIGHT ON CAN
CAUSE SEVERE ENGINE DAMAGE, REFER TO
TROUBLESHOOTING, PAGE 25,
