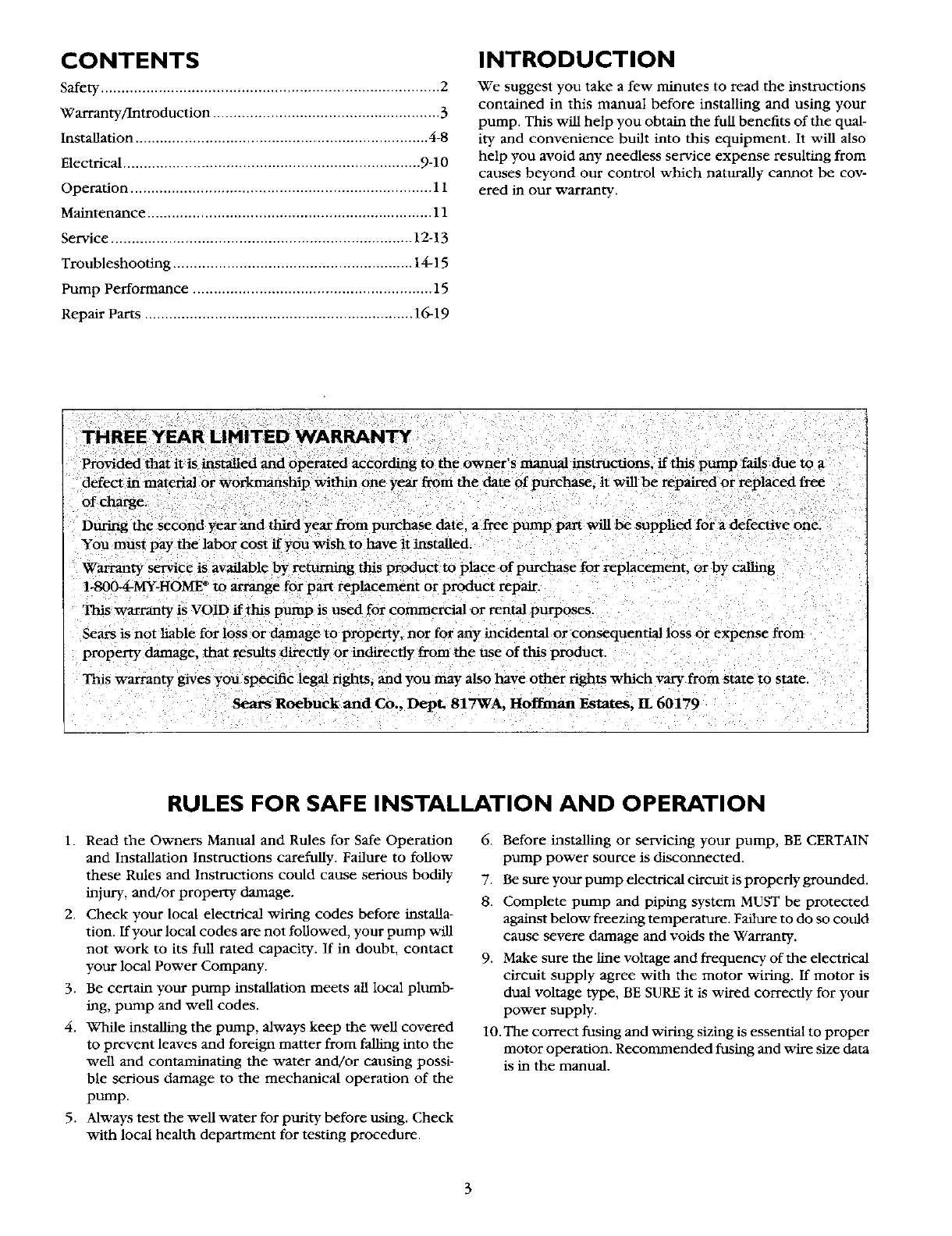

CONTENTS

Safety .................................................................................. 2

Warranty/Introduction ....................................................... 3

Installation ....................................................................... 4-8

Electrical ........................................................................ 9-10

Operation ......................................................................... 11

Maintenance ..................................................................... 11

Service ......................................................................... 12-13

Troubleshooting .......................................................... 14-15

Pump Performance .......................................................... 15

Repair Parts ................................................................. 16-19

INTRODUCTION

We suggest you take a few minutes to read the instructions

contained in this manual before installing and using your

pump. This viifi help you obtain the full benefits of the qual-

ity and convenience built into this equipment. It will also

help you avoid any needless service expense resulting from

causes beyond our control which naturally cannot be cov-

eredinourwarranty.

of charge.

During the Second year and third year from purchase date, a free pump part will be supplied for a defective one.

You must pay the labor cost if you wish to have it installed.

Warranty service is available by returning this product to place of purchase for replacement, or by calling

1-800-4-MY-HOME ®to arrange for part replacement or product repair.

This warranty is VOID if this pump is used for commercial or rental purposes.

Sears is not liable for loss or damage to property, nor for any incidental or consequential loss or expense from

property damage, that results directly or indirectly from the use of this product.

This warranty gives you specific legal rights, and you may also have other fights which vary from state to state.

Sears Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

RULES FOR SAFE INSTALLATION AND OPERATION

1. Read the Owners Manual and Rules for Safe Operation

and Installation Instructions careflifiy. Failure to follow

these Rules and Instructions could cause serious bodily

injury, and/or property damage.

2. Check your local electrical wiring codes before installa-

tion. ffyour local codes are not followed, your pump will

not work to its full rated capacity. If in doubt, contact

your local Power Company.

3. Be certain your pump installation meets all local plumb-

hag, pump and well codes.

4. While installing the pump, always keep the well covered

to prevent leaves and foreign matter from falling into the

well and contaminating the water and/or causing possi-

ble serious damage to the mechanical operation of the

pump.

5. Always test the well water for purity before using. Check

with local health department for testing procedure.

6. Before installing or servicing your pump, BE CERTAIN

pump power source is disconnected.

7. Be sure your pump electrical circuit is properly gruunded.

8. Complete pump and piping system MUST be protected

against below freezing temperature. Failure to do so could

cause severe damage and voids the Warranty.

9. Make sure the line voltage and frequency of the electrical

circuit supply agree with the motor wiring. If motor is

dual voltage type, BE SURE it is wired correctly for your

power supply.

10. The correct fusing and wiring sizing is essential to proper

motor operation. Recommended flWmg and v/ire size data

is in the manual.
