Note: Many of the illustrations in this manual show MITERFENCE \\ // I J

only portions of your compound miter saw. This is __ TABLE

intentional so that we can clearly show points being

made in the illustrations. Never operate your saw

without all guards securely in place and in good

operating condition,

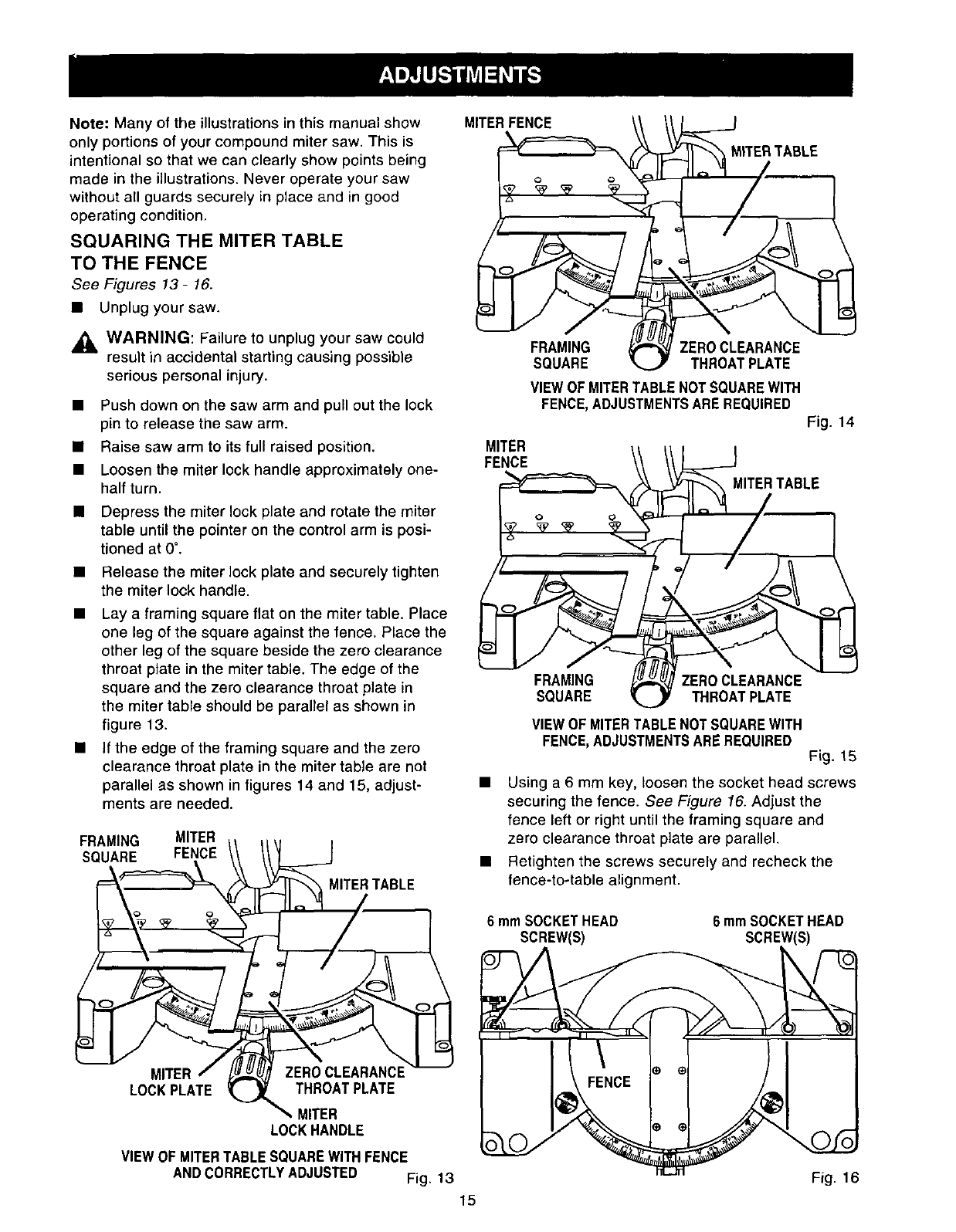

SQUARING THE MITER TABLE __

TO THE FENCE

See Figures 13 - 16.

Unplug your saw.

WARNING: Failure to unplug your saw could

result in accidental starting causing possible FRAMING _ ZEROCLEARANCE

SQUARE _ THROATPLATE

serious personal injury. VIEWOF MITERTABLENOTSQUAREWITH

• Push down on the saw arm and pull out the lock FENCE,ADJUSTMENTSAREREQUIRED

pin to release the saw arm. Fig. 14

• Raise saw arm to its full raised position. MITER

FENCE \\ //

• halfL°°senturn.themiter lock handle approximately one- __ TABLE

• Depress the miter lock plate and rotate the miter

table until !he pointer on the control arm is posi-

tioned at 0.

• Release the miter lock plate and securelytightenthemiter lock handle. ___

• Lay a framing square flat on the miter table. Place

one leg of the square against the fence. Place the

other leg of the square beside the zero clearance

throat plate in the miter table. The edge of the

FRAMING /_,_,,,_ ZEROCLEARANCE

square and the zero clearance throat plate in SQUARE _ THROATPLATE

the miter table should be parallel as shown in

figure 13. VIEWOF MITERTABLENOTSQUAREWITH

• if the edge of the framing square and the zero FENCE,ADJUSTMENTSAREREQUIRED

clearance throat plate in the miter table are not Fig. 15

parallel as shown in figures 14 and 15, adjust- • Using a 6 mm key, loosen the socket head screws

ments are needed, securing the fence. See Figure 16. Adjust the

fence left or right until the framing square and

FRAMING MITER _ H\r _ zero clearance throat plate are parallel.

SQUARE FENCE \\ //1 J • Retighten the screws securely and recheck the

=__ TABLE fence-to-table alignment.

o o _ _ 6 mmSOCKETHEAD 6 mmSOCKETHEAD

LOCKHANDLE _ (-') 0

V,EWOFM,TERTABLESQUAREWITHFENCE

AND CORRECTLYADJUSTED Fig. 13 Fig. 16
