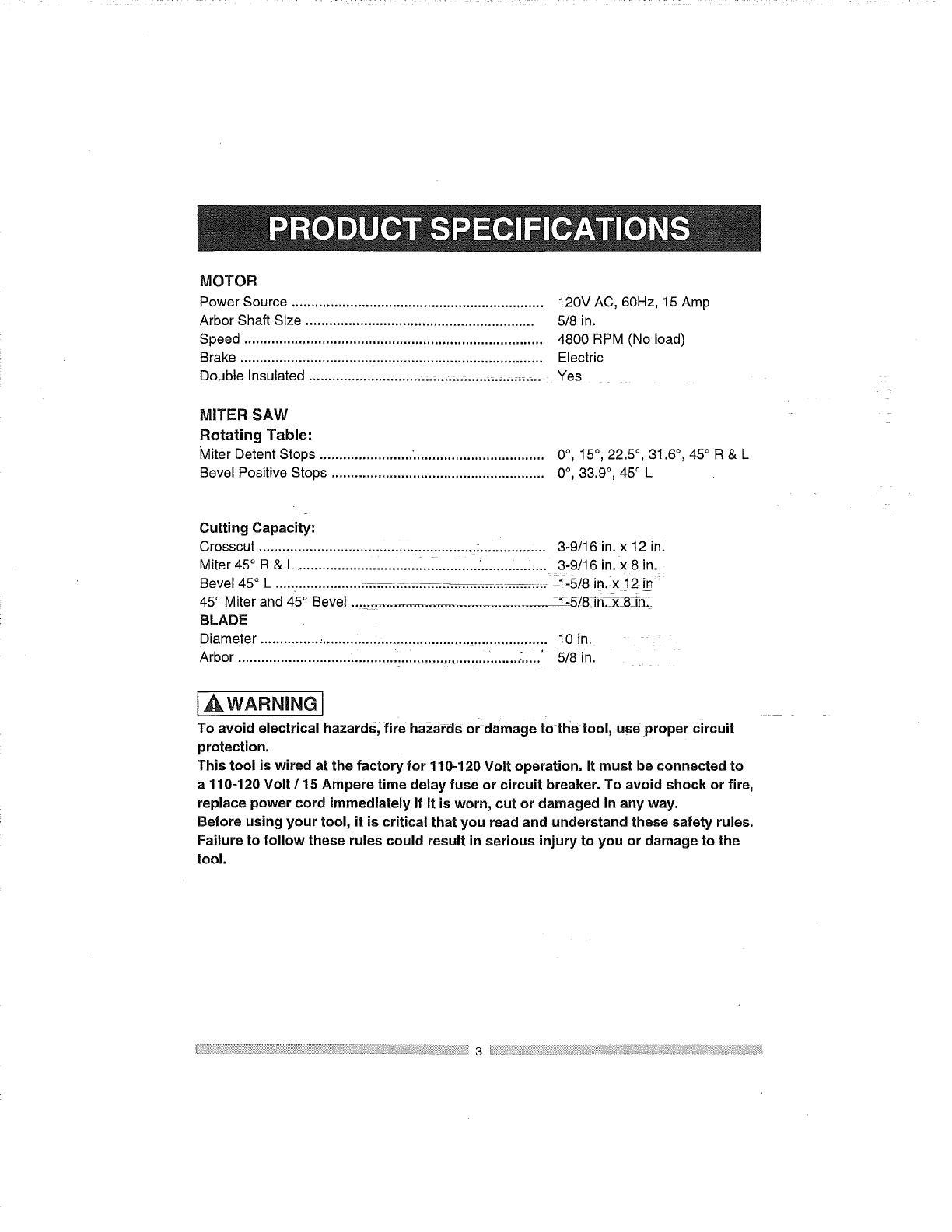

MOTOR

Power Source ................................................................. 120V AC, 60Hz, 15 Amp

Arbor Shaft Size ........................................................... 5/8 in.

Speed ............................................................................. 4800 RPM (No load)

Brake .............................................................................. Electric

Double Insulated ............................................................. Yes

MITER SAW

Rotating Table:

'MiterDetentStops ......................... ................................. 0°, 15°, 22,5°, 31.6°, 45° R& L

BevelPositive Stops....................................................... 0°, 33.9°, 45° L

Cutting Capacity:

Crosscut ........................................................ :................. 3-9/16 in. x 12 in.

Miter 45 ° R & L ................................ ...i'.....' ............. _...,.... 3-9/16 in. x 8 in.

Bevel 45° L .., .................................. ..... ............. 1-5/8 in.x 12 _ir

45° Miter and 45° Bevel ....,_................................... ._L-5!83n. x_8 _n_:

BLADE

Diameter .......................................................................... 10 in.

Arbor ............................. :.......... .. ....................... ....... _.,i.' 5/8 in.

,_WARNING

To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit

protection.

This tool is wired at the factory for 110-120 Volt operation. It must be connected to

a 110-120 Volt / 15 Ampere time delay fuse or circuit breaker. To avoid shock or fire,

replace power cord immediately if it is worn, cut or damaged in any way.

Before using your tool, it is critical that you read and understand these safety rules.

Failure to follow these rules could result in serious injury to you or damage to the

tool.
