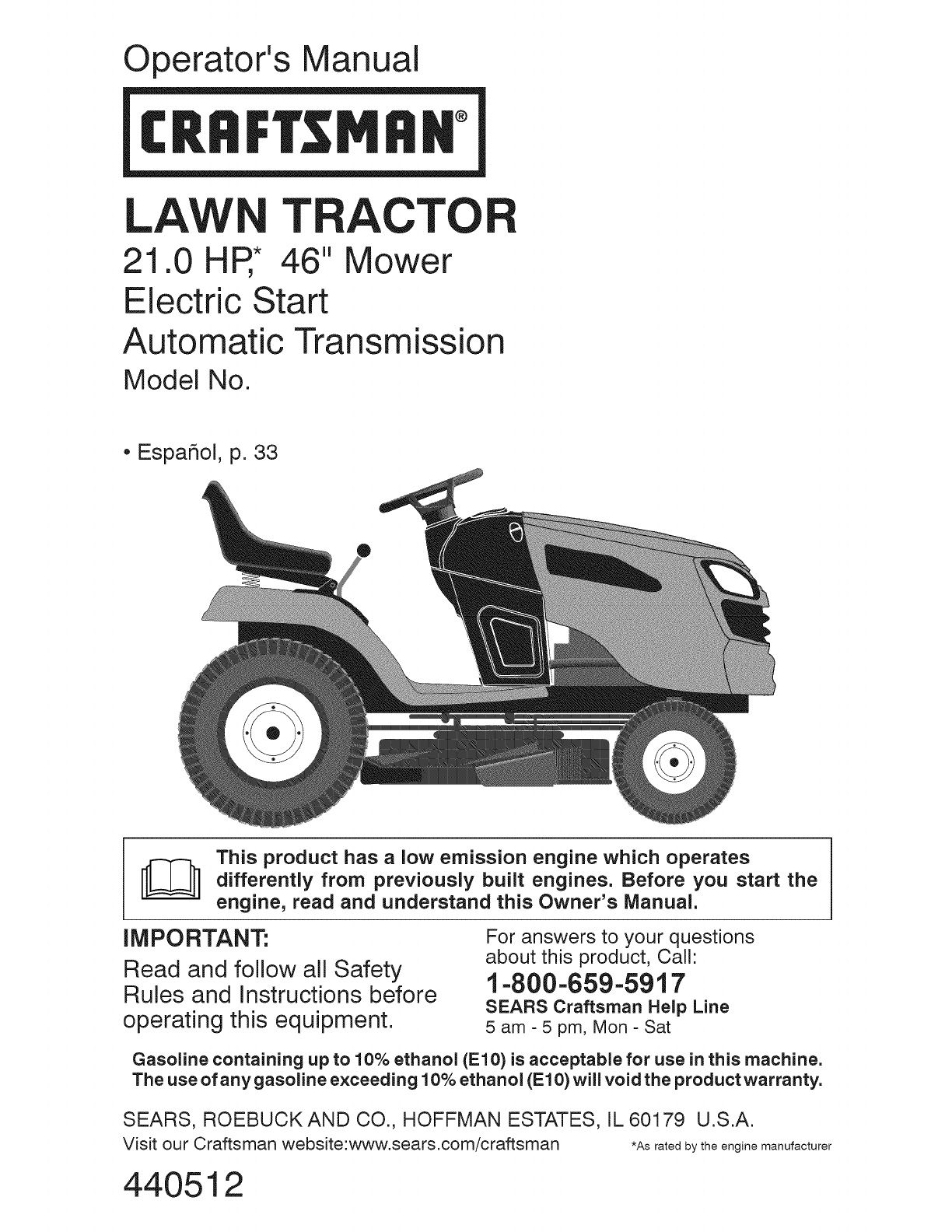

Operator's ManualCRRFrSMRM°LAW21.0 HR*TRACTO46" MowerElectric StartAutomatic TransmissionModel No.917.28852• EspaSol, p. 33This product has

KNOW YOUR TRACTORREAD THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOURTRACTORCompare the illustrations with your tractor to familiarize

The operation of any tractor can result in foreign objects thrown intothe eyes, which can result in severe eye damage. Always wear safetyglasses or ey

TO MOVE FORWARD ANDBACKWARDThe direction and speed of movement iscontrolled by the motion control lever. (J)1. Start tractor with motion control lever

REVERSE OPERATION SYSTEM (ROS)Your tractor is equipped with a ReverseOperation System (ROS). Any attempt bythe operator to travel in the reverse direc

BEFORE STARTING THE ENGINECHECK ENGINE OIL LEVELThe engine in your tractor has been shipped,from the factory, already filled with summerweight oil.1.

PURGE TRANSMISSIONA_CAUTION: Never engage or disengagefreewheel lever while the engine is running.To ensure proper operation and performance,it is rec

MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORESCHEDULE EACH 8 25 50 100 SEASON STORAGEUSE HOURS HOURS HOURS HOURSmCheck Brake Operation _Chec

TRACTORAlwaysobservesafetyruleswhenperformingany maintenance.BRAKE OPERATIONIf tractor requires more than five (5) feet tostop at highest speed in hig

BATTERYYour tractor has a battery charging systemwhich is sufficient for normal use. However,periodic charging of the battery with an au-tomotive char

.Refill engine with oil through oil fill dipsticktube. Pour slowly. Do not overfill. For ap-proximate capacity see "PRODUCT SP-ECIFICATIONS"

Warranty ... 2Safety Rules ... 3Product Specifications ...

CLEANING• Clean engine, battery, seat, finish, etc.of all foreign matter.• Clean debris from steering plate.Debris can restrict clutch/brake pedalshaf

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANYSERVICE OR ADJUSTMENTS:1. Depress clutch/brake pedal fully and set parking brake.2. Place motio

3. ATTACH MOWER SIDE SUSPENSIONARMS (A) TO CHASSIS - Position holein arm over pin (B) on outside of tractorchassis and secure with retainer spring.4.

TO LEVEL MOWERMake sure tires are properly inflated to thePSI shown on tires. Iftires are over or underinflated, it may affect the appearance of yourl

TO REPLACE MOWER BLADE DRIVEBELTThe mower blade drive belt may be replacedwithout tools. Park the tractor on level sur-face. Engage parking brake.BELT

TO REMOVE WHEEL FOR REPAIRS1. Block up axle securely.2. Remove axle cover, retaining ring andwashers to allow wheel removal (rearwheels have a square

REPLACING BATTERYn_asWARNING: Do not short battery termi-by allowing a wrench or any other objectto contact both terminals at the same time.Before con

Immediately prepare your tractor for storageat the end of the season or if the tractor willnot be used for 30 days or more._WARNING: Never store the t

TROUBLESHOOTING CHART:See appropriate section in manual unless directed to Sears service centerPROBLEM CAUSE CORRECTIONWill not startHard to start1 Ou

TROUBLESHOOTING CHART:See appropriate section in manual unless directed to Sears service centerPROBLEMEngine clicks butwill not startLoss of powerCAUS

_DANGER: This cutting machine is capable of amputating hands and feet andthrowing objects. Failure to observe the following safety instructions could

TROUBLESHOOTING CHART:See appropriate section in manual unless directed to Sears service centerPROBLEMMower blades willnot rotatePoor grassdischargeHe

TROUBLESHOOTING CHART:See appropriate section in manual unless directed to Sears service centerPROBLEM CAUSE CORRECTIONLoss of drive 1 Freewheel contr

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATIONPoONLY RIDE UP AND DOWN HILL,NOT ACROSS HILL15 DEGREES MAX.&1. FoJdthis page aJong dotted li

li. SLOPE OPERATIONSlopes are a major factor related to loss ofcontrol and tip-over accidents, which canresult in severe injury or death. Operationon

• Keep the nozzle in contact with the rimof the fuel tank or container opening atall times until fueling is complete. Do notuse a nozzle lock-open dev

PRODUCT SPECIFICATIONSGasoline Capacity 2.50 Gallonsand Type: Unleaded RegularOil Type SAE 30 (above 32°F)API-SG-SL): SAE 5W30 (below 32°F 'Oil C

Slope SheetKeys(2) KeysYour new tractor has been assembled at the factory with exception of those parts leftunassembled for shipping purposes.TOOLS RE

TO ROLL TRACTOR OFF SKID (SeeOperation section for location andfunction of controls)1. Raise attachment lift lever to its highestposition.2. Release p

These symbols may appear on your tractor or in literature supplied with the product. Learnand understand their meaning.R N H L I',,I @ -_REVERSE
