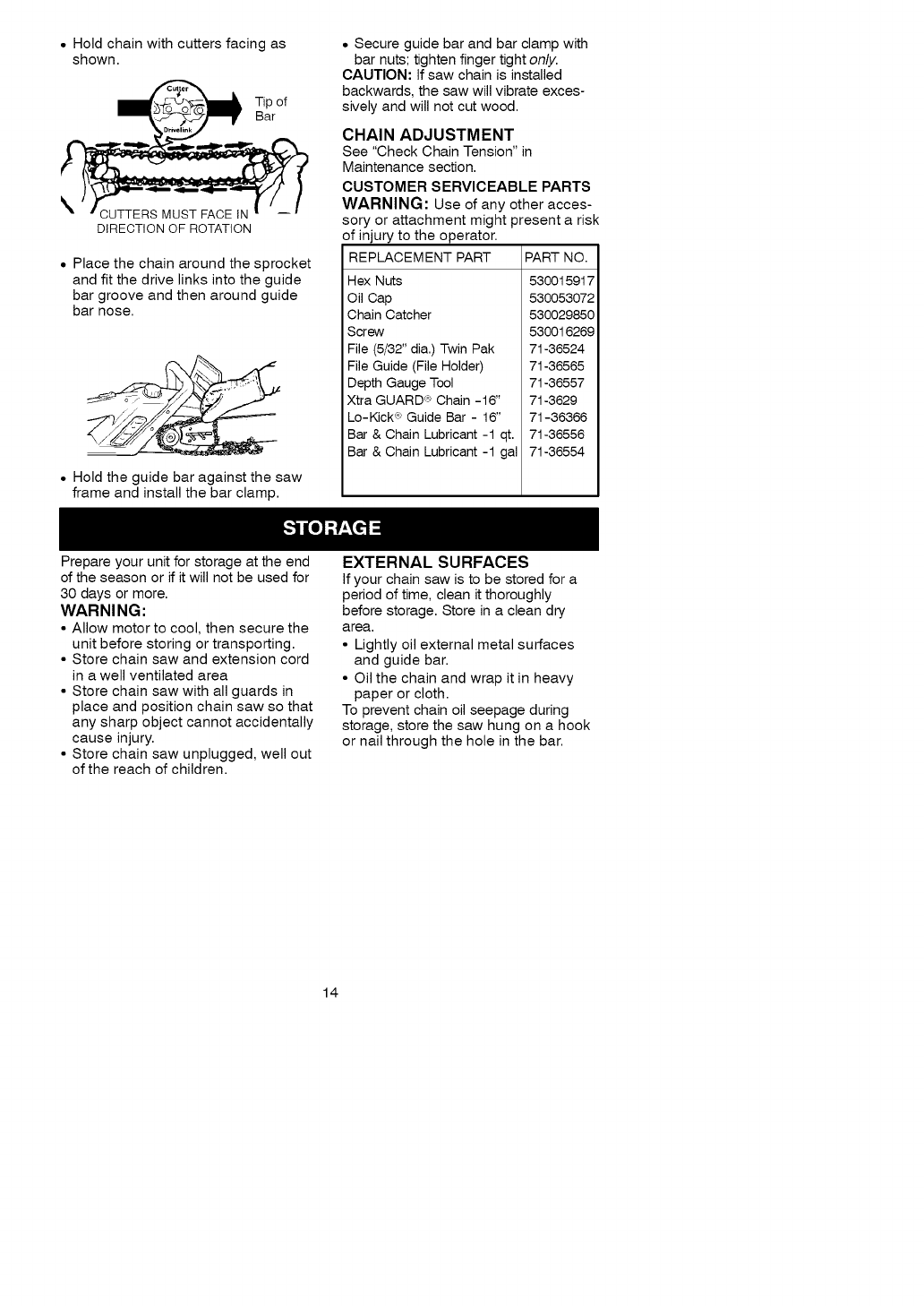

• Holdchainwithcuttersfacingas

shown.

Tipof

Bar

DIRECTIONOFROTATION

• Placethechainaroundthesprocket

andfitthedrivelinksintotheguide

bargrooveandthenaroundguide

barnose.

• Holdtheguidebaragainstthesaw

frameandinstallthebarclamp.

• Secureguidebarandbarclampwith

barnuts;tightenfingertightonly.

CAUTION: If saw chain is installed

backwards, the saw will vibrate exces-

sively and will not cut wood.

CHAIN ADJUSTMENT

See "Check Chain Tension" in

Maintenance section.

CUSTOMER SERVICEABLE PARTS

WARNING: Use of any other acces-

sory or attachment might present a risk

of injury to the operator.

REPLACEMENT PART

Hex Nuts

Oil Cap

Chain Catcher

Screw

File (5/32" dia.) Twin Pak

File Guide (File Holder)

Depth Gauge Tool

Xtra GUARD <_Chain -16"

Lo-Kick <_Guide Bar - 16"

Bar & Chain Lubricant -1 qt.

Bar & Chain Lubricant -1 gal

PART NO.

530015917

530053072

530029850

530016269

71-36524

71-36565

71-36557

71-3629

71-36365

71-36556

71-36554

Prepare your unit for storage at the end

of the season or if it will not be used for

30 days or more.

WARNING:

• Allow motor to cool, then secure the

unit before storing or transporting.

• Store chain saw and extension cord

in a well ventilated area

• Store chain saw with all guards in

place and position chain saw so that

any sharp object cannot accidentally

cause injury.

• Store chain saw unplugged, well out

of the reach of children.

EXTERNAL SURFACES

If your chain saw is to be stored for a

period of time, clean it thoroughly

before storage. Store in a clean dry

area.

• Lightly oil external metal surfaces

and guide bar.

• Oil the chain and wrap it in heavy

paper or cloth.

To prevent chain oil seepage during

storage, store the saw hung on a hook

or nail through the hole in the bar.
