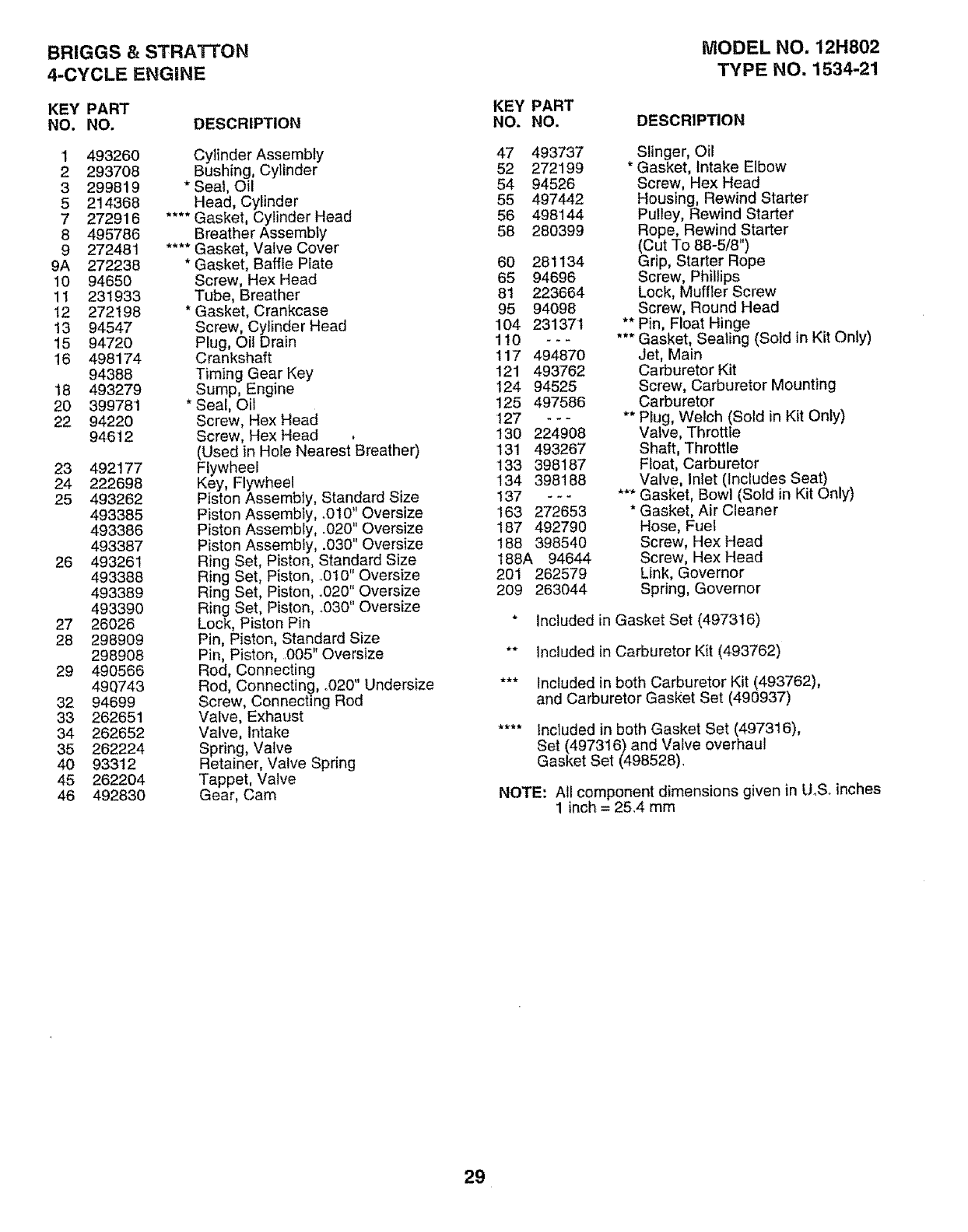

Craftsman 917.376430 Operator's Manual download pdf (Page 29)

BRIGGS & STRATTON

4-CYCLE ENGINE

KEY PART

NO. NO. DESCRIPTION

1 493260

2 293708

3 299819

5 214368

7 272916

8 495786

9 272481

9A 272238

10 94650

11 231933

12 272198

13 94547

15 94720

16 498174

94388

18 493279

20 399781

22 94220

94612

23

24

25

26

27

28

29

32

33

34

35

40

45

46

492177

222698

493262

493385

493386

493387

493261

493388

493389

493390

26026

298909

298908

490566

490743

94699

262651

262852

262224

93312

262204

492830

Cylinder Assembly

Bushing, Cylinder

Seat, Oil

Head, Cylinder

Gasket, Cylinder Head

Breather Assembly

Gasket, Valve Cover

Gasket, Baffle Plate

Screw, Hex Head

Tube, Breather

* Gasket, Crankcase

Screw, Cylinder Head

Plug, Oil Drain

Crankshaft

Timing Gear Key

, Sump, Engine

Seal, Oil

Screw, Hex Head

Screw, Hex Head ,

(Used in Hole Nearest Breather)

Flywheel

Key, Flywheel

Piston Assembly, Standard Size

Piston Assembly, .010" Oversize

Piston Assembly, °020" Oversize

Piston Assembly, .030" Oversize

Ring Set, Piston, Standard Size

Ring Set, Piston, o010" Oversize

Ring Set, Piston, .020" Oversize

Ring Set, Piston, °030" Oversize

Lock, Piston Pin

Pin, Piston, Standard Size

Pin, Piston, .005" Oversize

Rod, Connecting

Rod, Connecting, °020" Undersize

Screw, Connecting Rod

Valve, Exhaust

Valve, Intake

Spring, Valve

Retainer, Valve Spring

Tappet, Valve

Gear, Cam

MODEL NO. 12H802

TYPE NO. 1534-21

KEY PART

NO, NO.

DESCRIPTION

47 493737

52 272199

54 94526

55 497442

56 498144

58 280399

60 281134

65 94696

81 223664

95 94098

104 231371

110 ---

117 494870

121 493762

124 94525

125 497586

127 ---

130 224908

131 493267

133 398187

134 398188

137 ---

163 272653

187 492790

188 398540

188A 94644

201 262579

209 263044

Slinger, Oil

* Gasket, intake Elbow

Screw, Hex Head

Housing, Rewind Starter

Pulley, Rewind Starter

Rope, Rewind Starter

(Cut To 88-5/8")

Grip, Starter Rope

Screw, Phillips

Lock, Muffler Screw

Screw, Round Head

** Pin, Float Hinge

*** Gasket, Sealing (Sold in Kit Only)

Jet, Main

Carburetor Kit

Screw, Carburetor Mounting

Carburetor

** Plug, Welch (Sold in Kit Only)

Valve, Throttle

Shaft, Throttle

Float, Carburetor

Valve, Inlet (Includes Seat)

*** Gasket, Bowl (Sold in Kit Only)

* Gasket, Air Cleaner

Hose, Fuel

Screw, Hex Head

Screw, Hex Head

Link, Governor

Spring, Governor

* Included in Gasket Set (497316)

** Included in Carburetor Kit (493762)

*** Included in both Carburetor Kit (493762),

and Carburetor Gasket Set (490937)

.... Included in both Gasket Set (497316),

Set (497316) and Valve overhaul

Gasket Set (498528).

NOTE: All component dimensions given in UoSoinches

1 inch = 25.4 mm

29
