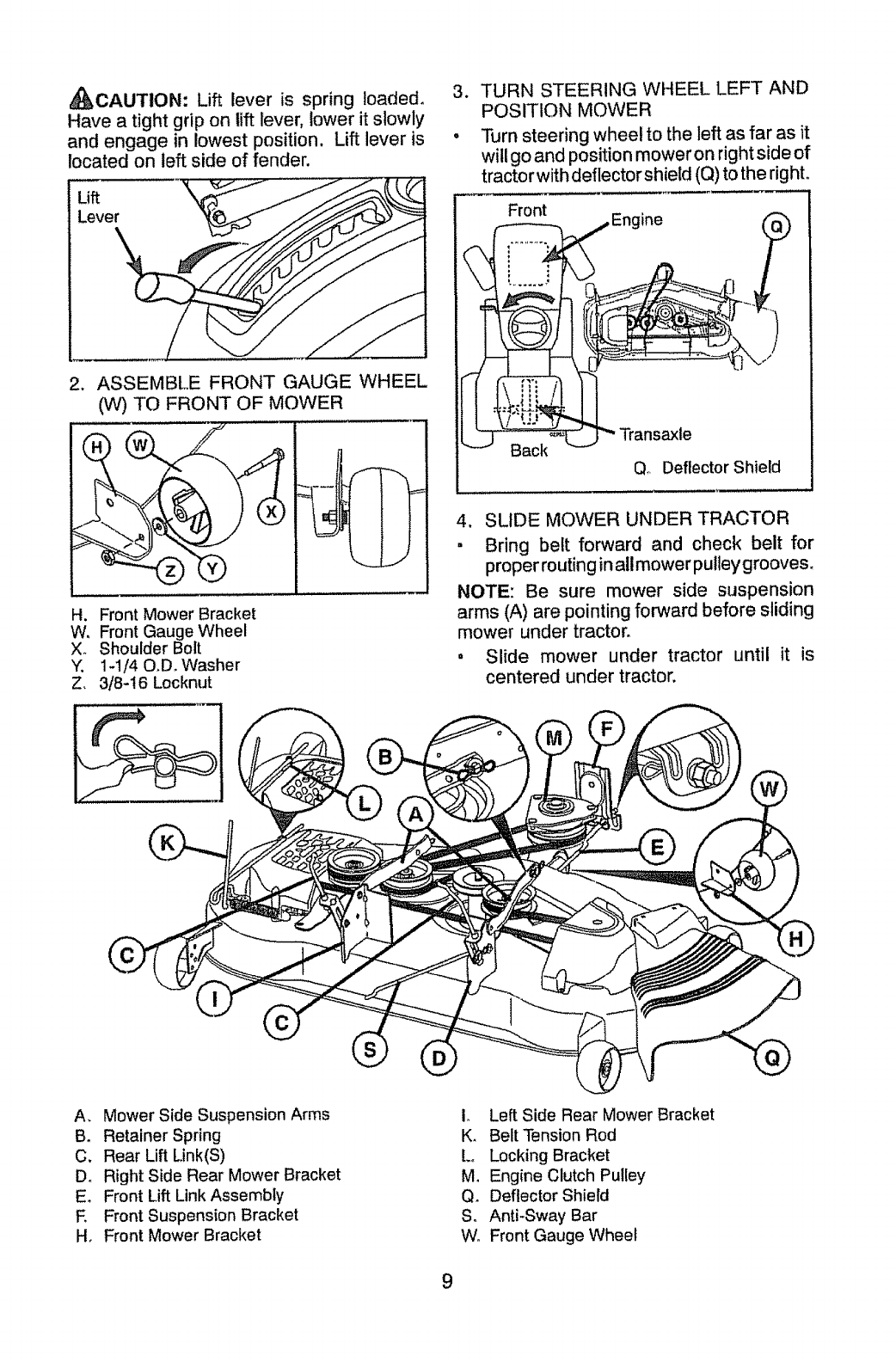

_.CAUTION: Lift lever is spring loaded.

Have a tight grip on lift lever, lower it slowly

and engage in lowest position. Lift lever is

located on left side of fender.

Li_

Lever

,

I

ASSEMBLE FRONT GAUGE WHEEL

_ TO FRONT OF MOWER

H. Front Mower Bracket

W. Front Gauge Wheel

Xo Shoulder Bolt

Y, 1-1/40.D, Washer

Z, 3/8-16 Locknut

3. TURN STEERING WHEEL LEFT AND

POSITION MOWER

o Turn steering wheel to the left as far as it

will go and position mower on right side of

tractor with deflector shield (Q) to the rig hL

Front

ine

,>

Back

Qo Deflector Shield

4. SLIDE MOWER UNDER TRACTOR

. Bring belt forward and check belt for

proper routing in all mower pulley grooves,

NOTE: Be sure mower side suspension

arms (A) are pointing forward before sliding

mower under tractor.

° Slide mower under tractor until it is

centered under tractor.

A, Mower Side Suspension Arms

B. Retainer Spring

C. Rear Lift Link(S)

Do Right Side Rear Mower Bracket

E_ Front Lift Link Assembly

E Front Suspension Bracket

H, Front Mower Bracket

I_ Left Side Rear Mower Bracket

K_ Belt Tension Rod

Lo Locking Bracket

M. Engine Clutch Pulley

Q_ Deflector Shield

S. Anti-Sway Bar

Wo Front Gauge Wheel

9
